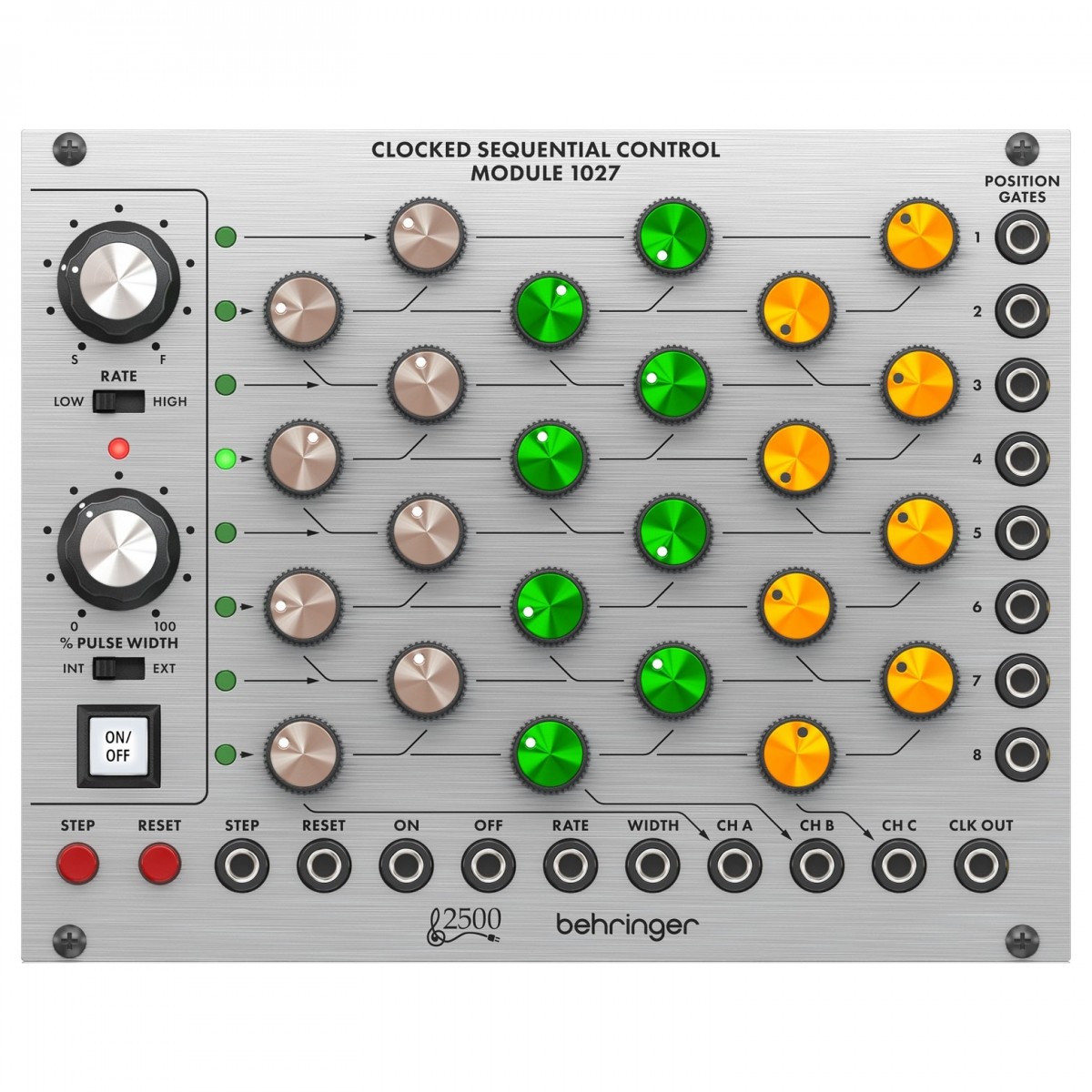

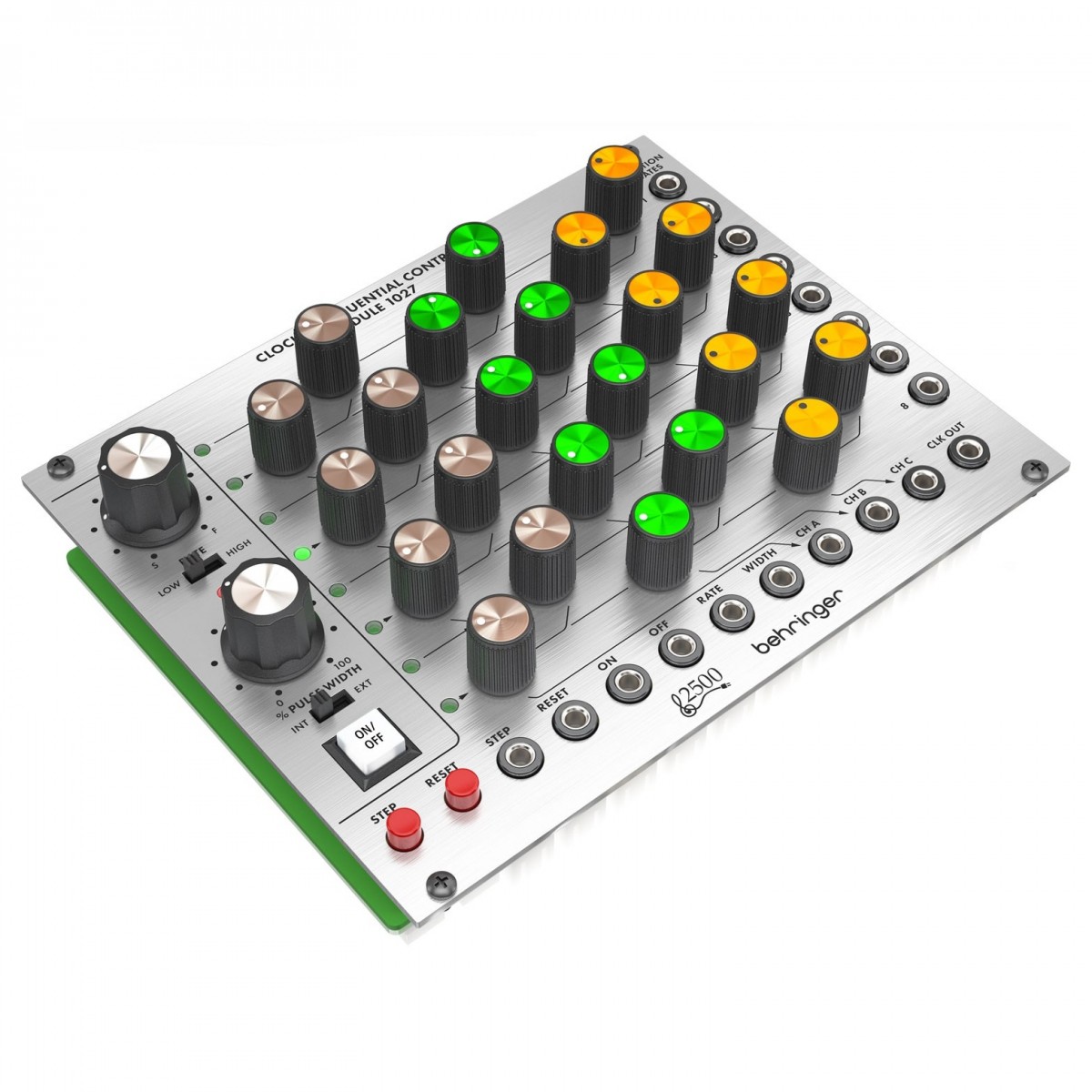

Behringer Clocked Sequential Control Module 1027 Sequencer Module

Explore modular synthesis

With the advancements in modern technology, it’s now easier than ever to capture the fabled sound of ’70s modular synthesis in compact and affordable packages. Expertly engineered, the Behringer Clocked Sequential Control Module is an authentic and historically accurate recreation of the sought-after ’70s sequencer, giving you the tools to unlock distinctive and creative sounds. Used by world-famous artists throughout the ’70s and onwards, you can now emulate the essence and character of some of the greatest synthesis sounds ever captured on record.

Sample and hold

Designed as a classic eight-step, three-channel sequencer, the 1027 Sequencer Module features an integrated eight-step counter with a large rate control knob and low/high range switch to match the tempo to your song to keep you in sync and locked in with your groove. An added pulse width control dial and internal/external switch allow you to control other 2500 series modules with the 1027 Sequencer, giving you a huge range of flexibility for syncing modules together. Each of the three channels provides you with independently adjustable CV output voltages to control external VCO frequency or filter cut-off frequency for each step of the sequence. Not only that, but it’s fitted with a large illuminated on/off switch for the integrated time-based generator to step automatically, giving you more freedom to get creative with the other modules in your system to affect your signal in real-time.

Ins and outs

To give you the maximum level of flexibility, the 1027 Sequencer Module gives you a comprehensive collection of connections. On and Off inputs allow you to start and stop the sequence with other 2500 series modules in your rack, while the Step and Reset inputs give external control over the step rate and sequencer reset. By having these external controls, you can focus on getting hands-on with other modules within your rack to perform more creative functions whilst your sequencer continues to deliver the rhythm you want. You also have full CV control over your step rate and pulse width through the Rate and Width inputs, as well as control over the three sequencer outputs and all eight steps of your sequence to trigger external modules.

Features

• Classic 1027 clocked sequential controller module from the ’70s
• Authentic and historically accurate reproduction of the original “2500” circuitry
• Eight-step circuit with three channels of control voltages
• Eight rows of three controls provide three independently adjustable voltage outputs for each
• Time-based generator allows for automatic step sequencing
• LED indicator to display sequencer count
• Push button to start and stop the internal clock
• Adjustable rate of internal clock from 20 per minute to 400 per second.
• Ability to stand-by the internal clock
• Clock pulse width and duration of the step voltages can be adjusted from 0-100
• When internal clock is turned off, the sequencer may be stepped along and reset manually
• Control voltages on channel A, B and C range between 0 to 10 V
• The 1027 can be used to control other 2500 Series modules including the 1026 Preset Voltages or 1050 Mix Sequencer modules
