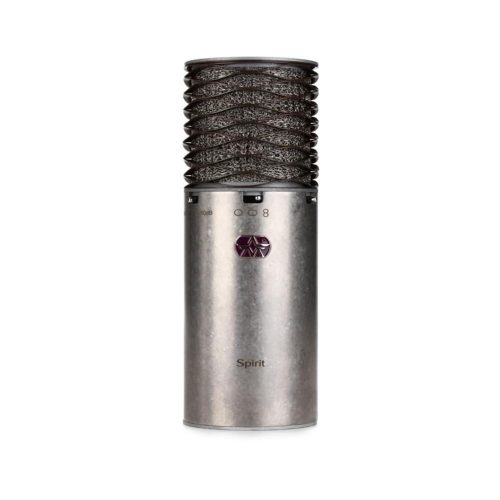

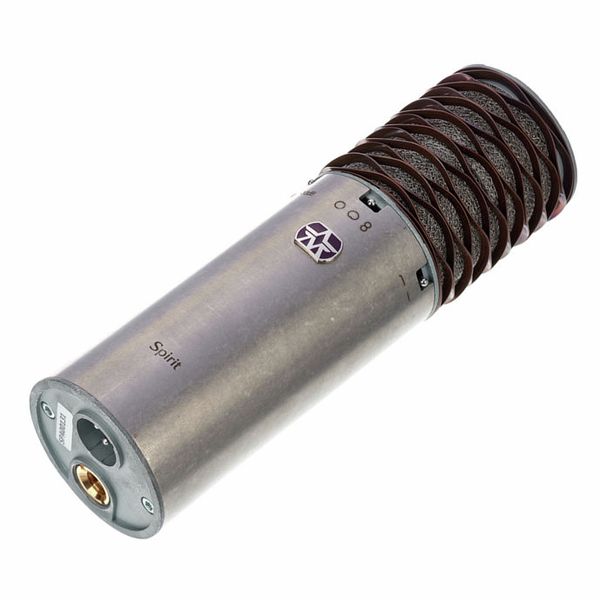

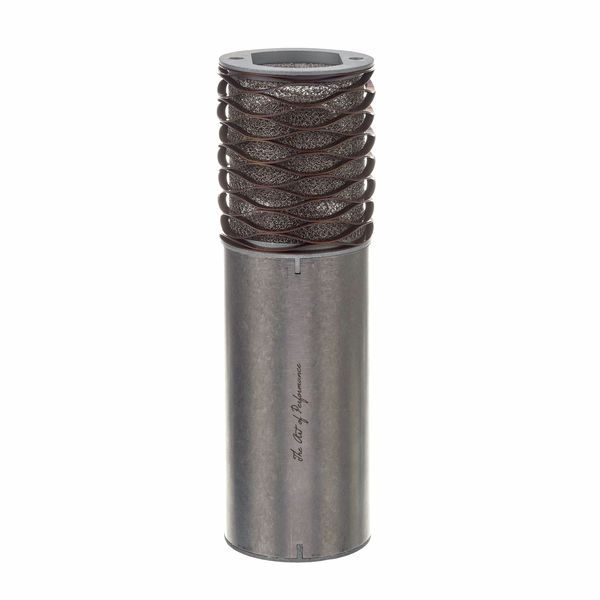

Aston Spirit Gold Evaporated Capsule Studio Condenser Microphone

Aston Spirit Gold Evaporated Capsule Studio Condenser Microphone


Transducer Type – Condenser
Acoustic Operating Principle – Pressure Gradient
Frequency Response – 20Hz – 20kHz (+/-3dB)
Equivalent Noise Level – 14dB A-Weighted
Sensitivity at 1kHz into 1kohm – 23.7mV/Pa
Maximum SPL for THD 0.5% – 138dB
Signal-to-Noise Ratio (rel. 94dB SPL) – 80dB A-Weighted
Polar pattern – Omni/Cardioid/Figure-of-Eight
Pad Switches -20dB/-10dB/0dB
Low-Cut Filter – 80Hz
Product length – 175 mm / 6.89 in
Product width – 54 mm / 2.13 in
Product weight – 625 g / 1.38 lb
SKU: XTMT-AST002 Categories: , , Brand:

  • Description
  • Reviews (0)


The Aston Spirit is a high-performance switchable pattern microphone utilising a 1” gold evaporated capsule. A switch on the mic body selects from Omni, Cardioid or Figure-of-Eight polar patterns. It is versatile enough to use with most instruments and excels on acoustic guitar and vocals. Its Aston 33 panel selected capsule is teamed with high-end transformer balanced circuitry using only the best components.

The Spirit is designed to deliver a beautifully open sound with sparkling harmonics. This highly accurate microphone gives a stunningly natural and transparent recording, capturing all the detail in the high range but without adding the harshness that some condenser microphones seem to.
