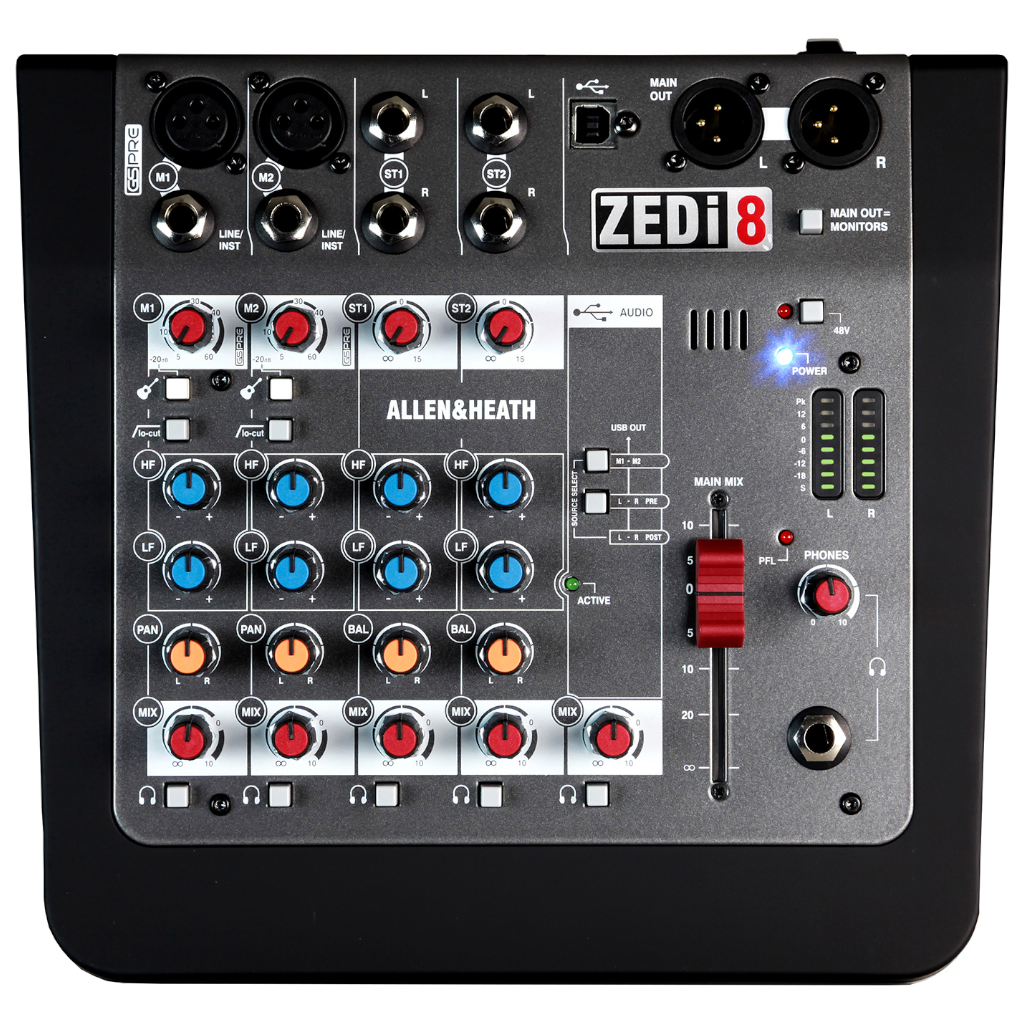

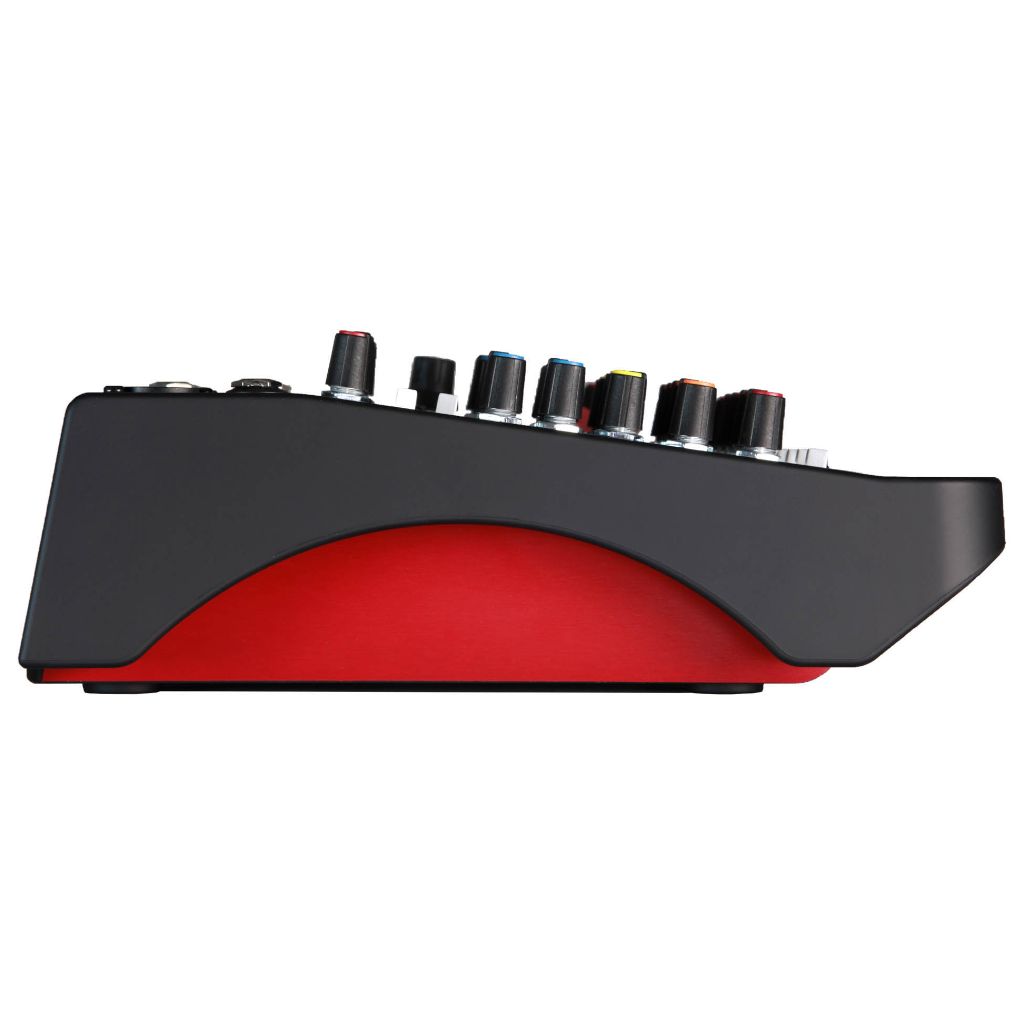

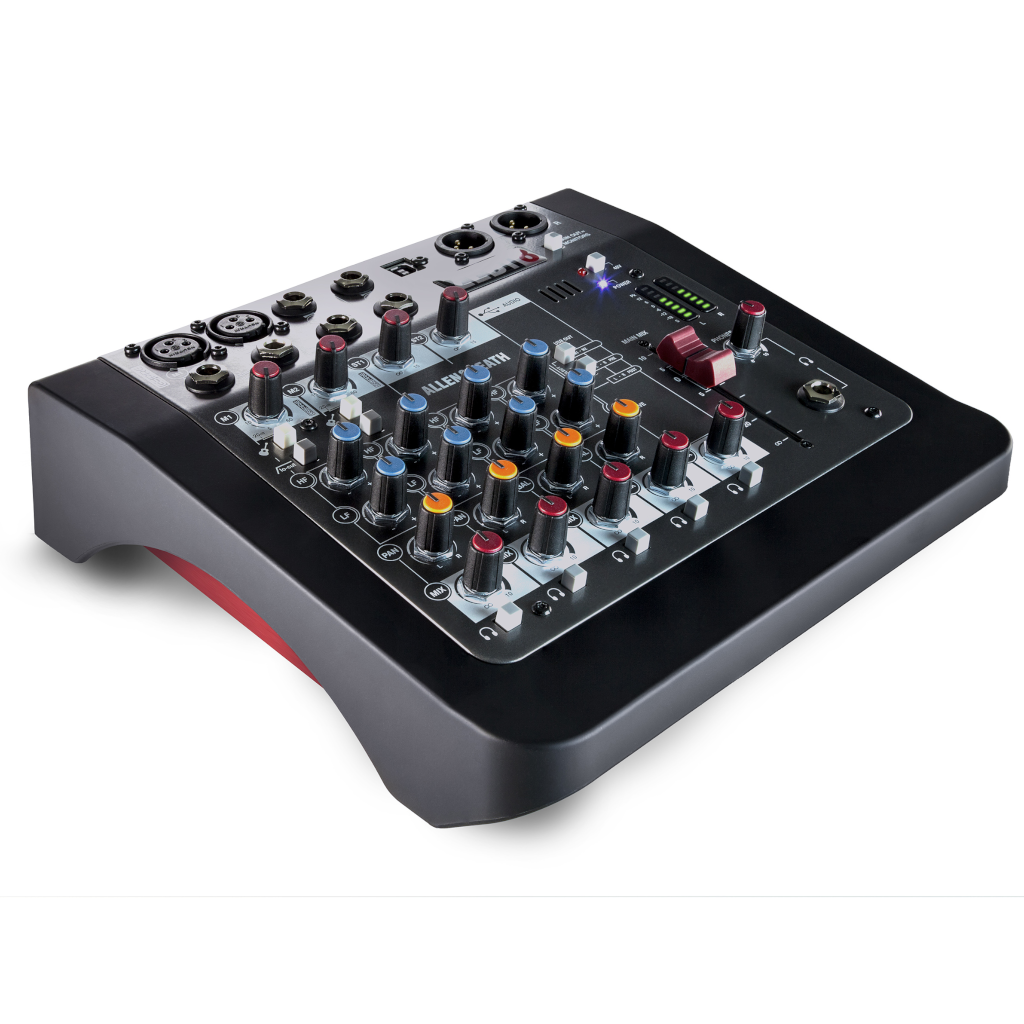

Allen and Heath ZEDi-8 – 8 Input Mixer w/ USB

With excellent sound quality and a built-in 2 x 2 USB audio interface, the Allen & Heath ZEDi-8 is a smart mixer for small-format studio and stage applications. Connect two microphones or mono line-level signals, or even two instruments without the need for DI boxes. Two additional stereo channels are available for synthesizers, drum machines, and other line-level sources. Record and play back two channels of 24-bit/96kHz audio via USB without the need for a separate interface. Factor in its exceptional build quality, and the compact Allen & Heath ZEDi-8 mixer stands out in its class.

• Record 24-bit/96kHz audio direct to your DAW
• GSPre preamps based on the GS-R24 recording console
• Connect guitar and bass directly, no need for DI boxes

Record 24-bit/96kHz audio direct to your DAW

With USB 2.0 connectivity, the Allen & Heath ZEDi-8 mixer is ready to record and play back 24-bit/96kHz audio. Just connect to your computer or iOS device, open the included Cubase LE software, Cubasis LE app, or your preferred DAW software, and you’re ready to go. Separate controls for the USB playback channels allow you to blend USB audio with the Main Mix and Aux Mix independently.

GSPre preamps based on the GS-R24 recording console

Don’t be reluctant to plug your best mics into the Allen & Heath ZEDi-8. This compact mixer boasts GSPre preamplifiers, created by analog guru Mike Griffin and based on his acclaimed GS-R24 recording console. These preamps provide lots of headroom and very little noise, and promise to deliver pleasing warmth and depth. Whether you’re podcasting or recording vocals for a music project, expect great results from the ZEDi-8’s GSPre preamps.

Connect guitar and bass directly, no need for DI boxes

You won’t need separate direct boxes to connect your guitar or bass to the ZEDi-8 mixer, unlike many other compact mixers. The first two channels have switchable hi-Z inputs: just hit the switch and connect any electric or acoustic-electric instruments you like. Engage the low-cut filter to help reduce rumble and unwanted low frequencies, then shape your sound to taste with the 2-band EQ.

Features:

• Rugged compact mixer with two mono channels, two stereo channels, and USB recording/playback
• 2-in/2-out USB 2.0 interface supports 24-bit/96kHz audio quality
• Includes Cubase LE DAW software for Mac/PC, and Cubasis LE app for iOS
• GSPre mic preamps offer high headroom and low noise floor
• Connect guitars and basses without separate DI boxes thanks to switchable hi-Z inputs
• Low-cut filters to reduce rumble and other unwanted low frequencies
• Effective sound shaping from 2-band EQs
• Channels can be individually assigned to the headphone mix
• XLR outputs for studio monitors or powered PA speakers
• Smooth 60mm fader for controlling your main mix
• Rotary controls are secured to the faceplate with steel nuts for maximum durability
