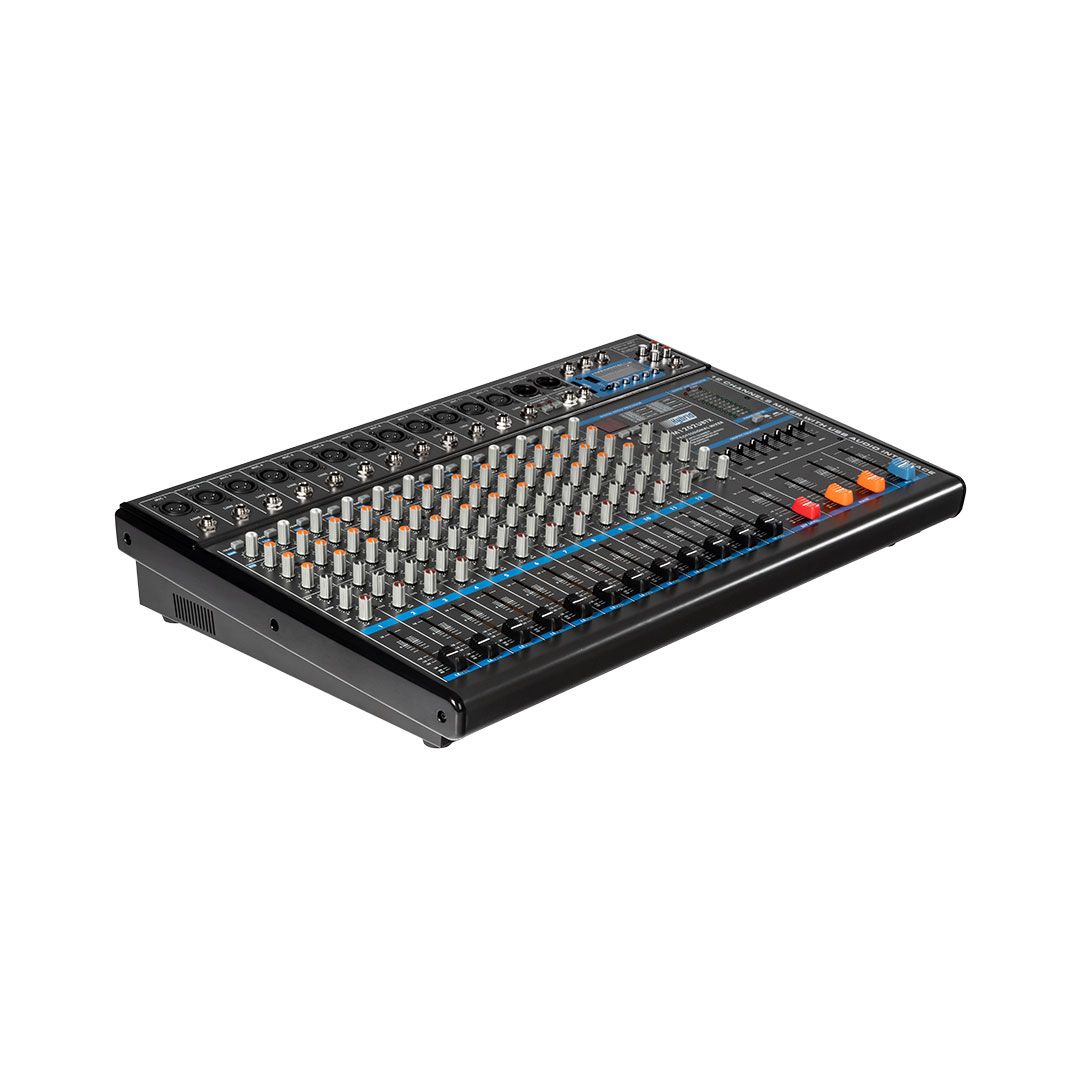

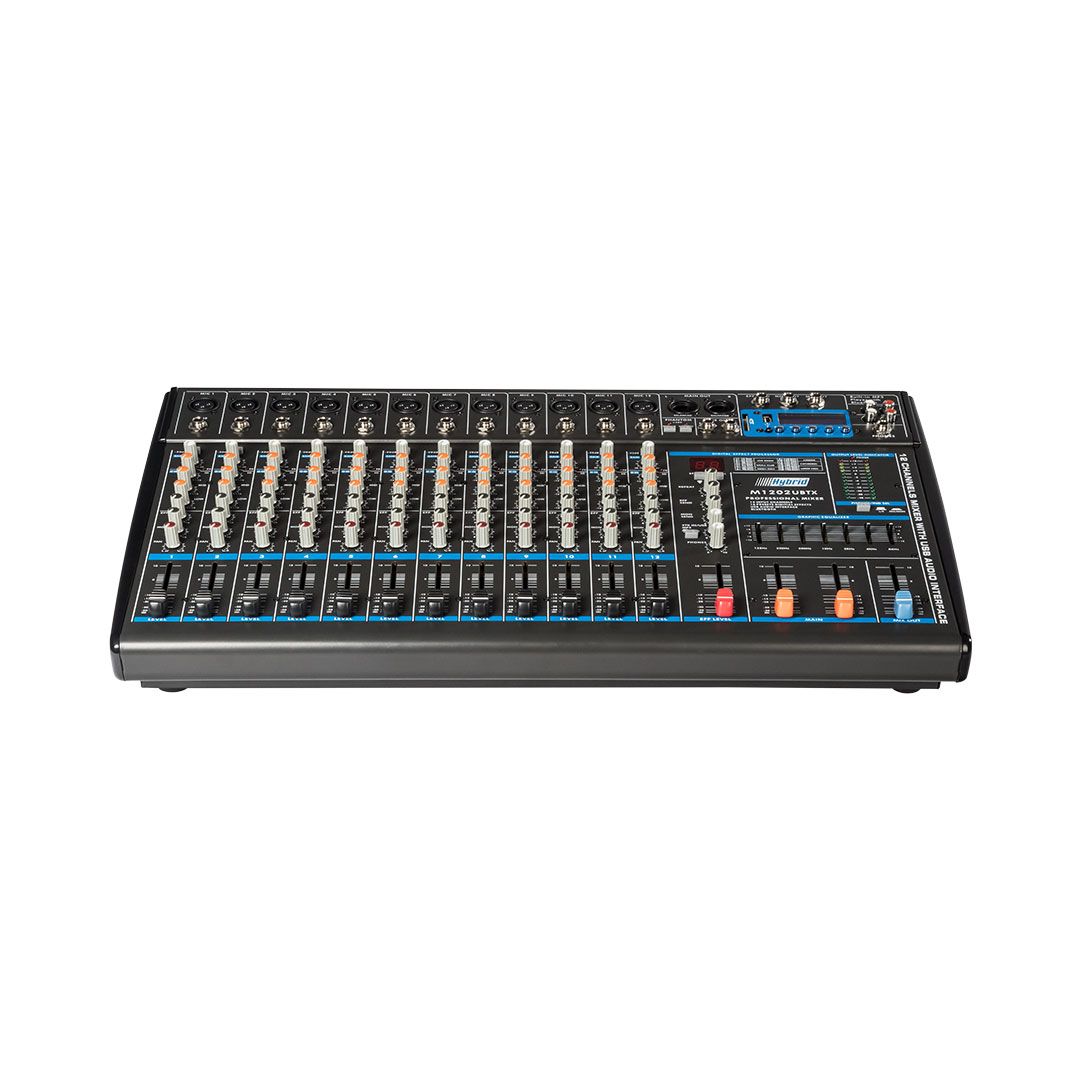

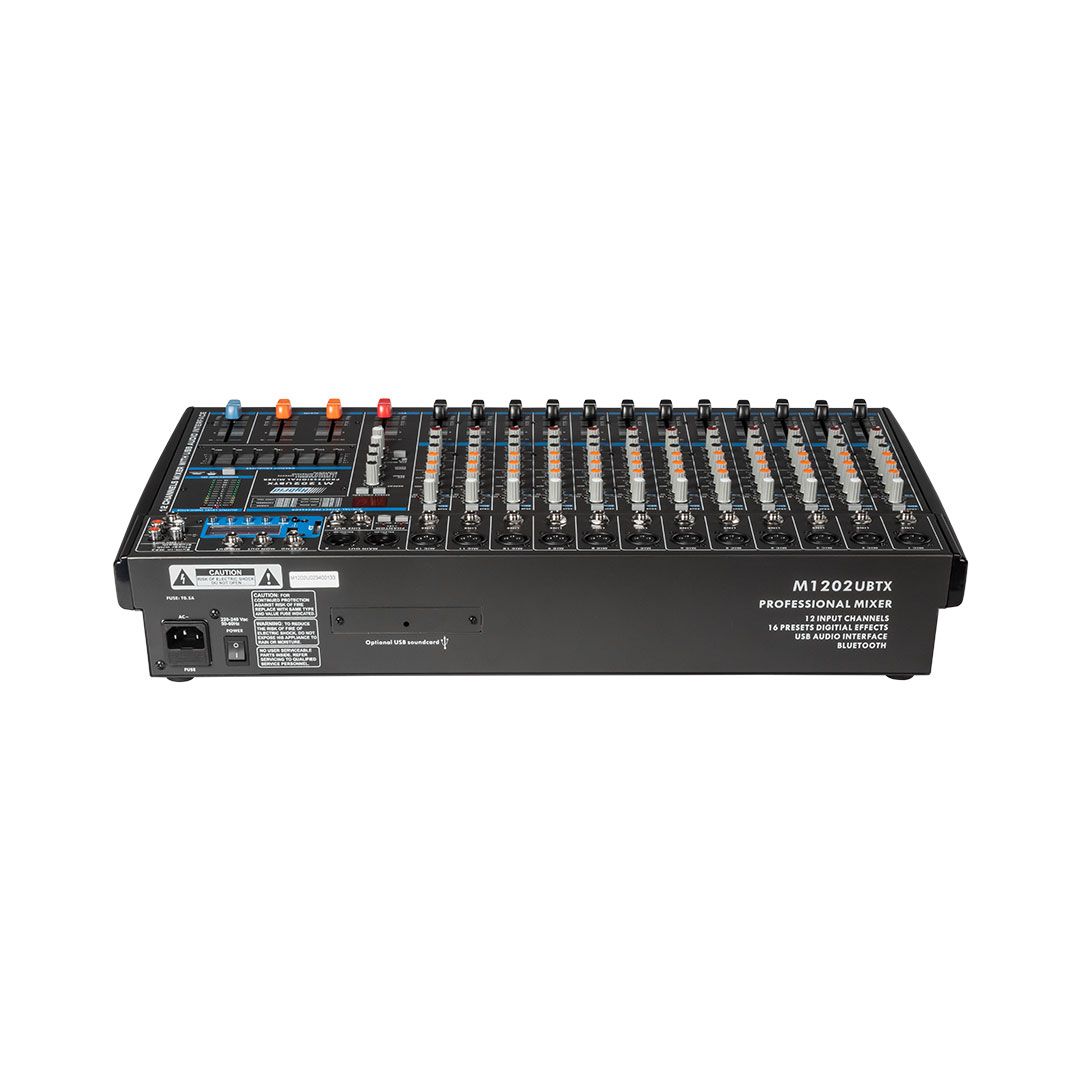

Hybrid M1202UBTX 12 Channel Analogue Mixer
SKU: MIXHYB007Original price was: R6,025.00.R4,520.00Current price is: R4,520.00.
In Stock at Warehouse
The Hybrid M1202UBTX is an 12 channel, medium format, analogue live mixer.
The M1202UBTX hosts a number of features such as a built-in MP3 media player with USB and SD card ports, a 16 Digital effects processor, switchable phantom power between input channel banks for condenser microphones and many more. This makes it ideal for small productions such as those commonly found in schools, smaller places of worship and small stages.
Why Buy From Marshall Music
At Marshall Music, we’re all passionate and highly experienced musicians that love what we do. Family run and family owned for over 35 years, we stock a huge variety of the very best brands in the world of musical instruments, music technology, professional audio and accessories. At Marshall Music, you’ll get the right advice – exactly what you need to make the best possible purchasing decision. We’ll do all we can to make sure you get the right thing at the right price as efficiently as possible – leaving you with a smile on your face!
Mic Channel Controls:• 12 Mono Mic/Line Channels (XLR, ¼” Jack – Balanced)
• Mic Input Impedance: 3kΩ
• Line Input Impedance: 47kΩ
• -20dB Attenuation Switch
• Gain potentiometer
• Individual Low (80Hz), Mid (2.5KHz) & Hi (15KHz) EQ potentiometers (-15/+15 dB)
• Effects Send Potentiometer
• Monitor Potentiometer
• Pan Potentiometer
• Level Fader,60mmMaster Controls:• 16 Digital Effect Processor
• Effect Repeat Potentiometer
• Effect Send Level Potentiometer
• Effects Level Fader, 60mm
• Monitor Send Potentiometer
• 2TK Play / MP3-USB Level Potentiometer, Switchable
• MP3-USB / SD Card Media player & Bluetooth module, LCD Screen (Play, Pause, Folder select, >>,<<)
• Headphones Potentiometer
• 48V Phantom switchable Channels 1-9 & Channels 10-12
• Individual Left & Right Master Level Faders, 60mm
• Mix Out Fader, 60mm
• 12 Bar LED Master Level /Mix Out- Monitor Indicators, switchable
• 7 Band Graphic Equaliser, +/- 12dB (100, 250, 500, 1K, 2K, 4K, 8K – Hz)General:• Balanced XLR Outputs (Left & Right)
• Unbalanced ¼” Jack Line Outputs (Left & Right)
• RCA Record Output (Left & Right) 10kΩ
• Monitor Unbalanced Output ¼” Jack, 600kΩ
• Mix Unbalanced Output ¼” Jack, 600Ω
• Effect Unbalanced Send ¼” Jack, 600Ω
• 2TK Play – Unbalanced RCA (Left & Right) 10kΩ
• THD: 20-20KHz, <0.1%
• Noise: -120dB @ Max Gain
• Frequency Response: 20-20KHz (+/- 2dB)
• Inbuilt PSU, IEC Mains Connection
• Dimensions: 570mm (Width) 360mm (Depth) 105mm (Height)
• Weight: 5Kg
