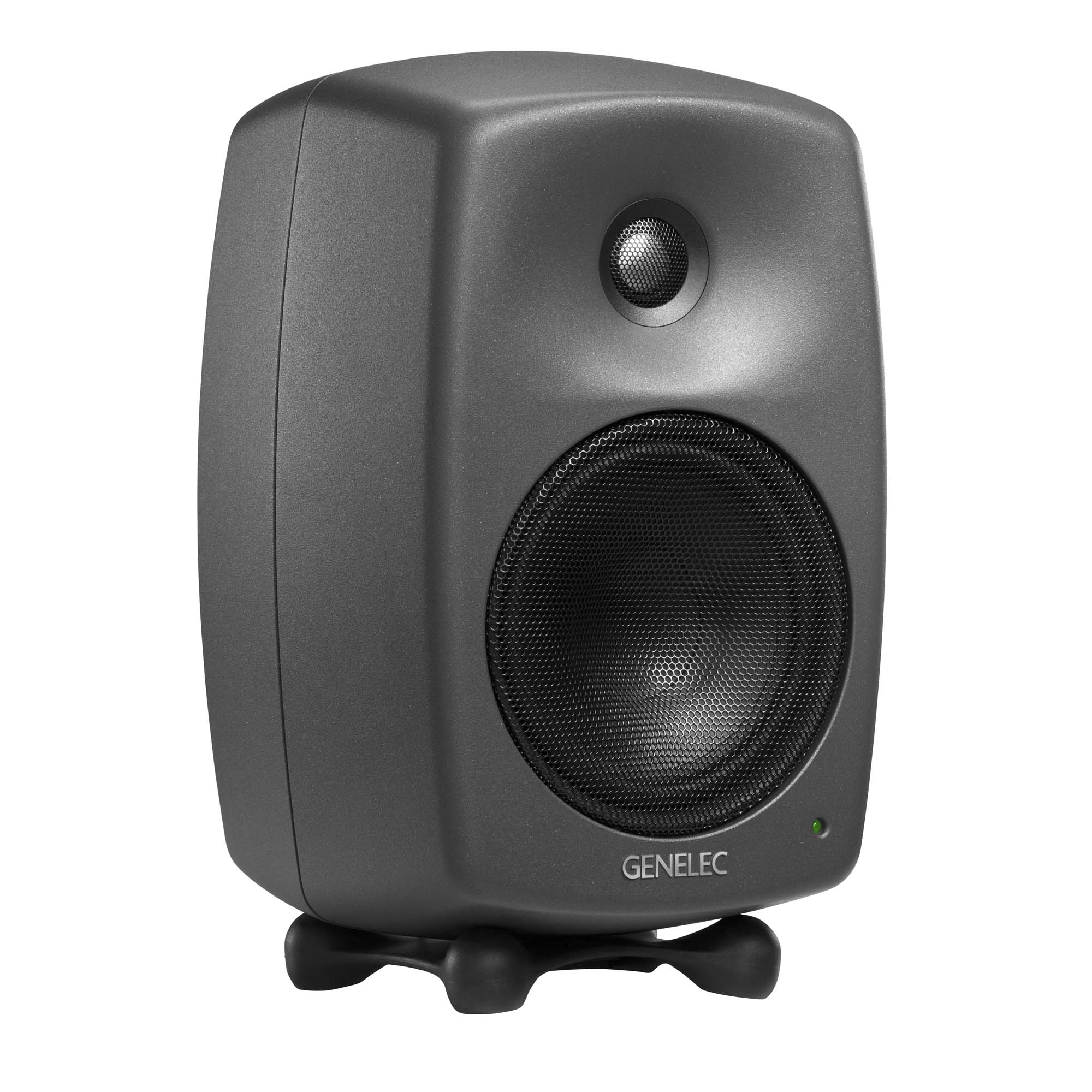

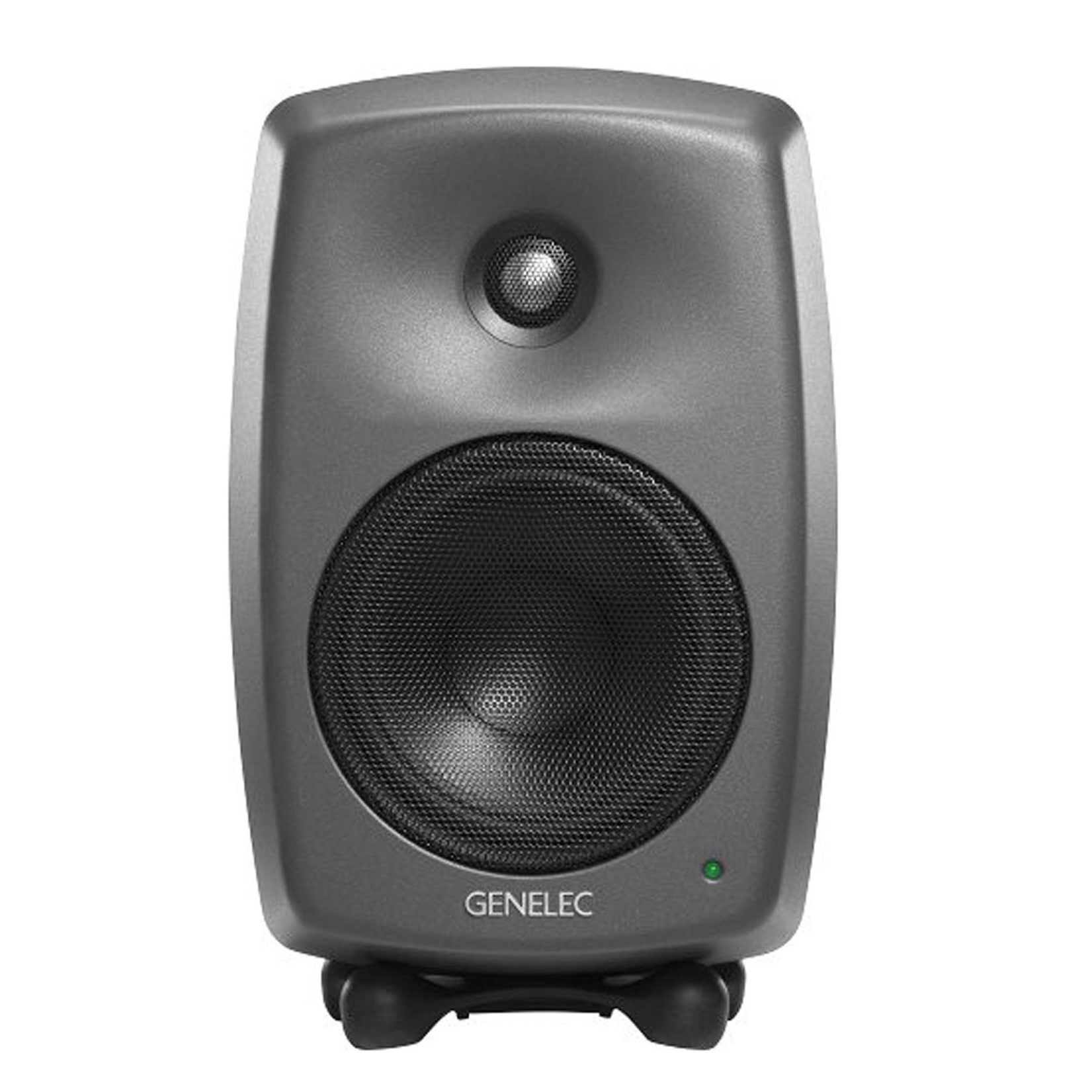

Genelec 8330A 5 inch Powered Studio Monitor (Individual)
SKU: GEN8330AR19,545.00
Powered Bi-amplified Studio Monitor with 50W 5″ Woofer, 50W .75″ Metal Dome Tweeter, Smart Active Monitor Technology, Directivity Control Waveguide, Minimum Diffraction Enclosure, and ISS Power Management (each)
In Stock at Warehouse
Combining precision, adaptability and a small footprint, the 8330A offers colour-free performance and powerful room compensation features.
The professional’s choice
The choice of demanding professionals for whom power and flexibility go hand-in-hand, the 8330A offers a little more SPL and LF extension than its smaller 8320A sibling. Providing transparent and truthful reproduction, the 8330A’s wide uncoloured sweet spot means you are always in a position to make accurate, reliable mix decisions.
Truly optimised monitoring
As a Smart Active Monitor, the 8330A integrates closely with our GLM software via which it can be configured and calibrated for your listening environment, compensating for detrimental room influences to create a truly optimised monitoring solution from mono to immersive. So if you need to work in challenging acoustic spaces, the 8330A is your compact but clever monitoring companion.
System Specifications
Frequency Response
58 Hz – 20 kHz (± 1.5 dB)
Low cutoff -6dB
45 Hz
High cutoff -6dB
23 kHz
SPL
Peak SPL
≥110 dB
Maximum peak acoustic output per pair at 1 m distance with music material.
Short term max SPL
≥104 dB
Maximum short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz at 1 m.
Long term max SPL
≥96 dB
Maximum long term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver unit protection circuit) at 1 m.
Self-generated noise
Self-generated noise
≤5 dB
Self generated noise level in free field on axis (A-weighted).
Weight
Weight
5.5 kg (12.1 lb)
Dimensions
Height
285 mm (11 7/32 in)
Height with Iso-Pod
299 mm (11 25/32 in)
Width
189 mm (7 7/16 in)
Depth
178 mm (7 in)
Enclosure
Enclosure material
Die cast aluminium
Enclosure type
Reflex port
Drivers
Bass
Driver type
Cone
Diameter
130 mm (5 1/8 in)
Treble
Driver type
Metal dome
Diameter
19 mm (3/4 in)
Directivity
Harmonic distortion
> 100 Hz ≤0.5 %
Group delay
The latency at high frequencies from the input to the acoustic output, measured in the analog input:
In Genelec performance graphics, the time of converting the from an electronic input signal to the acoustic output in a Genelec monitor is described by two factors – latency and group delay. The group delay factor can be read in the graphics for a specific frequency. The total frequency-specific input-to-output delay is a sum of the latency and group delay factors. To understand the significance of this total delay, consider that moving a loudspeaker away by 1 meter creates an additional delay of about 3 ms.
Amplifier Section
Amplifiers
8330A bass amplifier
50 W Class D
8330A treble amplifier
50 W Class D
Mains voltage
100-240 VAC 50/60Hz
Power consumption
ISS Active
≤0.5 W
Idle
≤3 W
Full output
50 W
Signal processing section

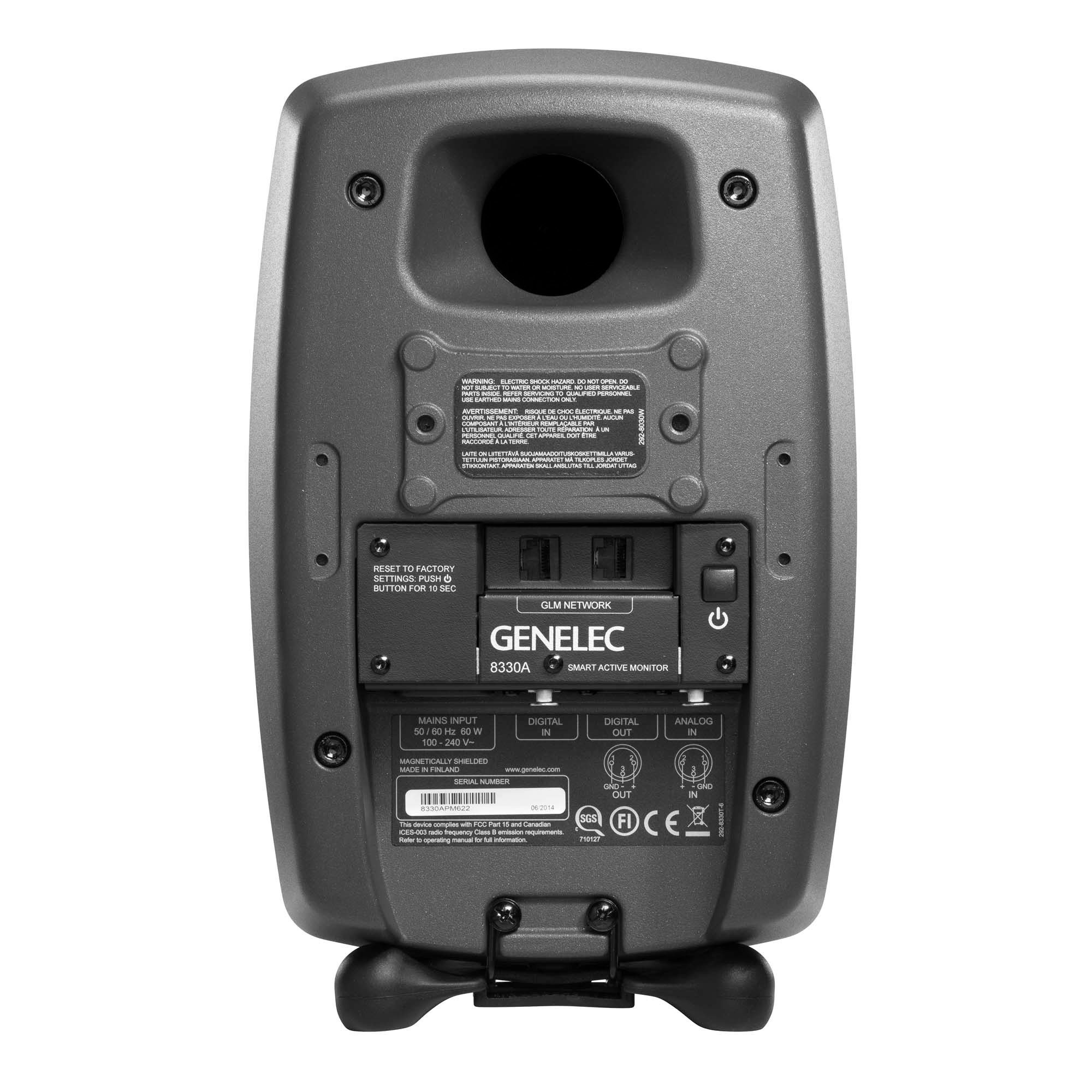

Connectors
Input
Analog signal input connector XLR female, balanced 10 kOhm.
Input
XLR female IN
Output
XLR male OUT
2 x Control
Two CAT5 (RJ45) GLM Network connectors for computer control using the Genelec Loudspeaker Manager (GLM) software.
