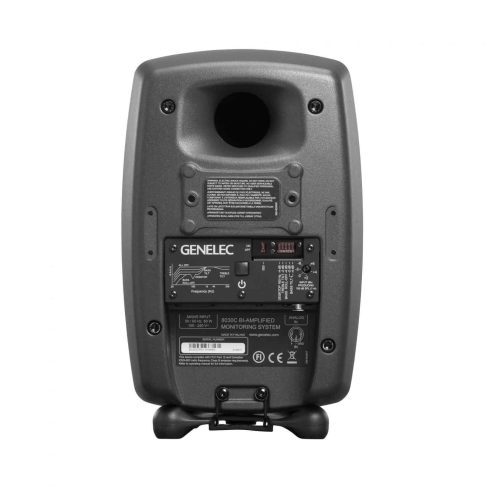

Genelec 8030C 5 inch Powered Studio Monitor (Individual)

Name: Genelec 8030C 5 inch Powered Studio Monitor (Individual)
Brand: Genelec
SKU: GEN8030C
Price: 15629.00 ZAR
Availability: BackOrder

SKU: GEN8030C

R15,629.00

Powered Studio Monitor with 50W 5″ Woofer, 50W .75″ Metal Dome Tweeter, Directivity Control Waveguide, Minimum Diffraction Enclosure, and ISS Power Management (each)

In Stock at Warehouse

Your Product Page

Description
Tech Specs

If you love the compact format of the 8010 and 8020 models but demand higher SPL and more bass extension, meet the 8030C.

Welcome to the sweet spot

A consistent best-seller, the 8030C sits in the perfect sweet spot of big monitor performance and small footprint. It offers precise imaging and staggering detail, but can go louder and lower than its smaller siblings – making it the perfect choice for slightly larger spaces.

System Specifications

Frequency Response

54 Hz – 20 kHz (± 2 dB)

Low cutoff -6dB
47 Hz

High cutoff -6dB
25 kHz

SPL

Peak SPL
≥110 dB

Maximum peak acoustic output per pair at 1 m distance with music material.

Short term max SPL
≥104 dB

Maximum short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz at 1 m.

Long term max SPL
≥96 dB

Maximum long term RMS acoustic output in same conditions with IEC weighted noise (limited by driver unit protection circuit) at 1 m.

Self-generated noise

Self-generated noise
≤5 dB

Self generated noise level in free field at 1 m on axis (A-weighted).

Weight

Weight
5 kg (11.0 lb)

Dimensions

Height
285 mm (11 7/32 in)

Height with Iso-Pod
299 mm (11 25/32 in)

Width
189 mm (7 7/16 in)

Depth
178 mm (7 in)

Enclosure

Enclosure material
Die cast aluminium

Enclosure type
Reflex port

Drivers

Bass

Driver type
Cone

Diameter
130 mm (5 1/8 in)

Treble

Driver type
Metal dome

Diameter
19 mm (3/4 in)

Directivity

Horizontal directivity

Harmonic distortion

50…100 Hz ≤2 %
> 100 Hz ≤0.5 %

Amplifier Section

Amplifiers

8030C bass amplifier

50 W Class D

8030C treble amplifier

50 W Class D

Mains voltage

100-240 VAC 50/60Hz

Power consumption

ISS Active
≤0.5 W

Idle
≤3 W

Full output
60 W

Signal processing section

Connectors

Input

Analog signal input connector XLR female, balanced 10 kOhm.

Crossover

Bass/Treble
3000 Hz
