Original price was: R5,495.00.R4,399.00Current price is: R4,399.00.
Please note that due to the size and weight of this item it is unfortunately not eligible for free shipping outside of Gauteng. Please contact us to get a quote for shipping/delivery fees
In Stock at Warehouse
The EVO-X Series strikes the perfect balance between affordability and performance. Positioned in-between our Impact Series and the Delta Series of passive loudspeakers, EVO-X is a new multipurpose lineup of 8 models featuring many useful and practical design elements.
Key Features
|
|
The surface of EVO-X is covered in our enhanced Rhino rock paint.
This is durable and hardwearing and will protect the EVO-X throughout its life.
The surface of EVO-X is also engraved with the iconic Wharfedale Pro boomerang logo. A logo which demonstrates sonic and hardware quality.
The full range and monitor models of the EVO-X series feature a handy +3dB boost switch.
This gives the output a little ‘lift’ when needed depending on the acoustics of the venue.

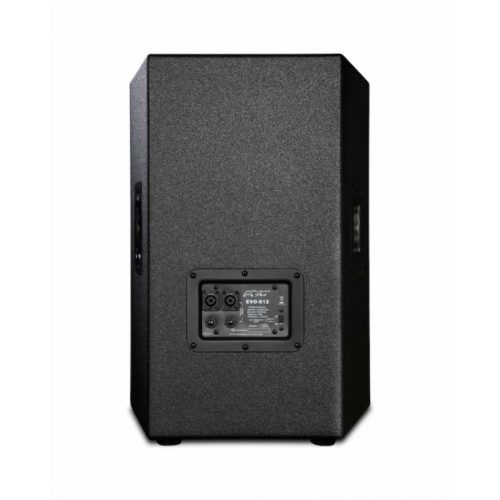

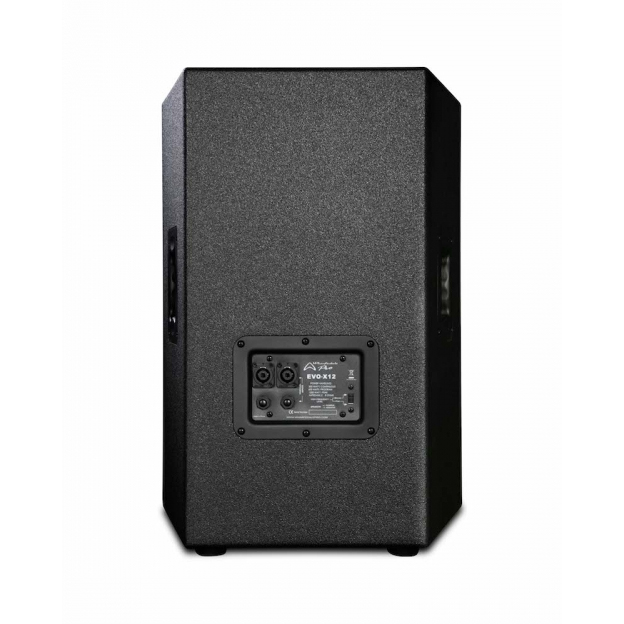

Inputs are also versatile due to the inclusion of both NL4 (speakON compatible) connectors AND standard 1/4″ jack sockets.
These features mean that EVO-X is simple to setup wherever the performance is taking place.
The cabinet is constructed of MDF.
This solid, but still lightweight, material gives EVO-X rigidity and reduces any mechanical distortion which a lesser material may introduce.
The MDF material also contributes to the overall tone of EVO-X. It delivers a warmth and roundness to the sound, making EVO-X a pleasure to listen to, even at higher volumes.
Along with the smooth sound characteristics, which are enhanced by the MDF construction, the EVO-X series also use 90° x 60° Elliptical waveguides.
This waveguide delivers the directional dispersion needed for a variety of live applications and installations, and direct the EVO-X’s IRIS X compression driver’s output to just where you want it.
Why Buy From Marshall Music
At Marshall Music, we’re all passionate and highly experienced musicians that love what we do. Family run and family owned for over 35 years, we stock a huge variety of the very best brands in the world of musical instruments, music technology, professional audio and accessories. At Marshall Music, you’ll get the right advice – exactly what you need to make the best possible purchasing decision. We’ll do all we can to make sure you get the right thing at the right price as efficiently as possible – leaving you with a smile on your face!
| Model name | EVO-X12 |
| System Type | Passive |
| Configuration | 2-way |
| Frequency Response (+/-3dB) | 55Hz-20kHz |
| Frequency Range (-10dB) | 50Hz-20kHz |
| Sensitivity (2.83v/1m) | 98dB |
| System rated impedance | 8Ω |
| Calculated Maximum SPL @1m | 129dB |
| Low Frequency Transducer | |
| Size | 305mm / 12″ |
| Voice coil size | 51.6mm / 2″ |
| Rated impedance | 8Ω |
| LF Power (re:AES-2012) | 300w |
| Hi Frequency Transducer | |
| HF Driver type | Compression driver |
| Voice coil size | 44.5mm / 1.75″ |
| Exit size | 25mm / 1″ |
| Diaphragm Material | Titanium |
| Rated impedance | 8Ω |
| HF Power (re:AES-2012) | 40w |
| Nominal coverage | 90° x 60° |
| Power | |
| System continuous power | 300w |
| System programme power | 600w |
| System peak power | 1200w |
| Crossover Frequency | 2.3kHz |
| Input connectors | 2 x NL4 (speakON Compatible) + 2 x 1/4″ Jacks |
| Hardware | |
| Pole mount | Dual Angle (0⁰ or 10⁰) 35mm Pole Socket |
| Handles | 2 on sides |
| Enclosure | |
| Enclosure material | MDF |
| Finish | Rhino rock black paint |
| Grille material and finish | 1.2mm Steel |
| Dimensions – unpacked | |
| Height | 590mm / 23.23″ |
| Width front | 430mm / 16.93″ |
| Width rear | 297.5mm / 11.71″ |
| Depth | 370mm / 14.57″ |
| Dimensions – packed | |
| Height | 655mm / 25.79″ |
| Width front | 492mm / 19.37″ |
| Width rear | 328mm /12.91″ |
| Depth | 408mm / 16.06″ |
| Weight | |
| Net weight | 19.2kg / 42.2lbs |
| Gross weight | 22.4kg / 49.3lbs |
