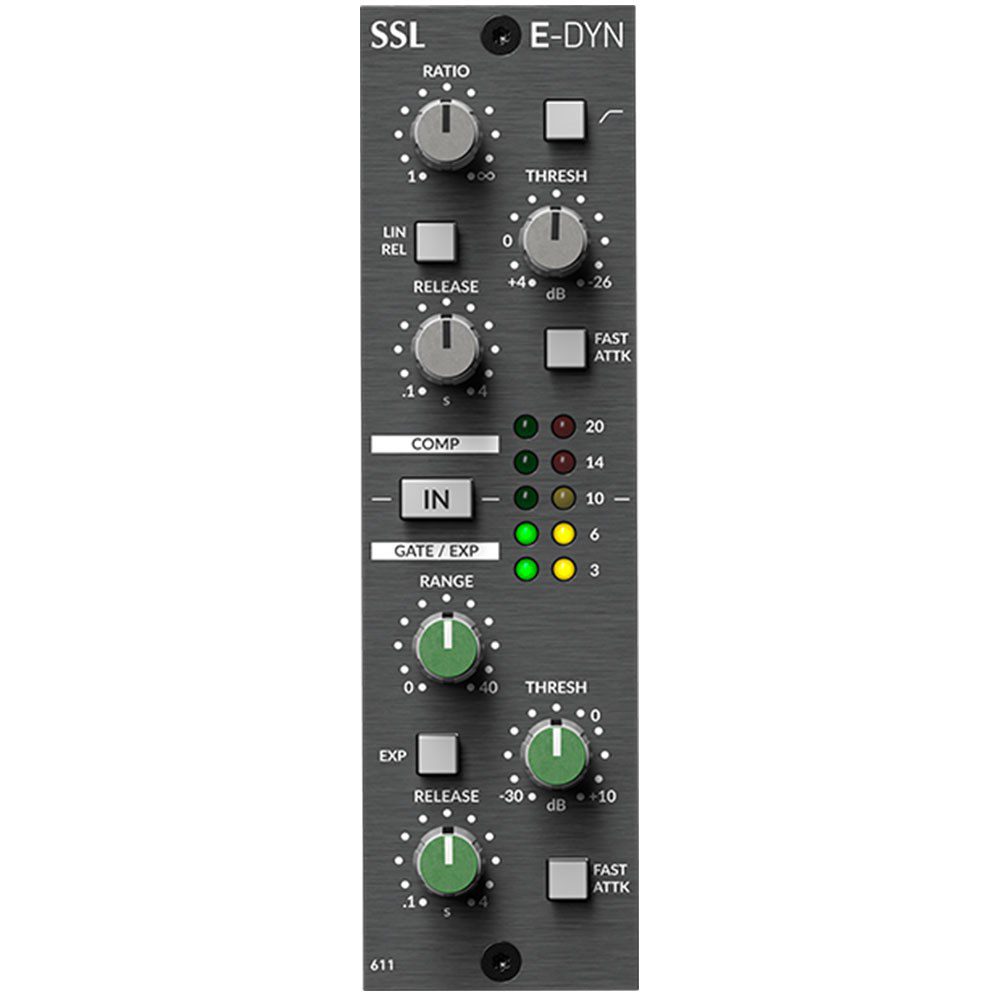

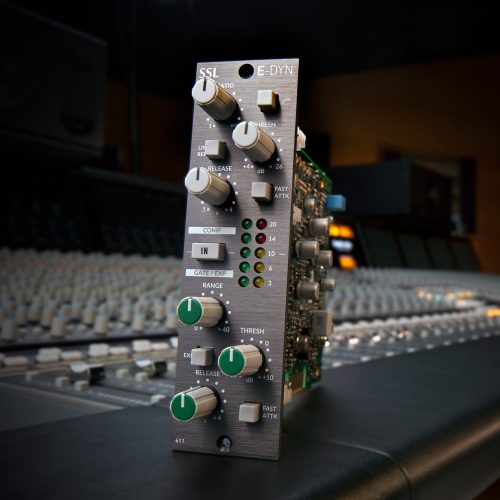

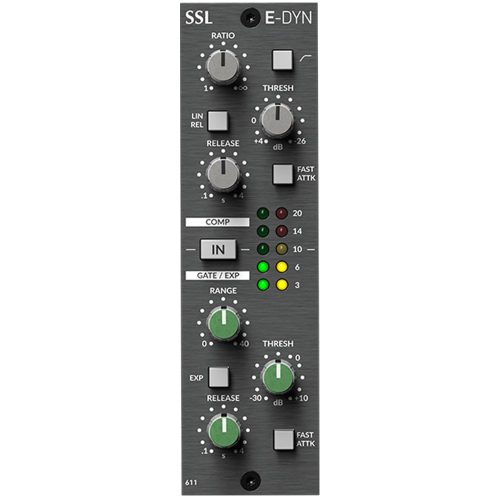

Solid State Logic 611DYN 500 Series Dynamics Module

The Solid State Logic 611DYN dynamics module brings the legendary channel dynamics from the 1980s SL 4000 E console into a single 500 Series rack space. Combining a compressor/limiter and an expander/gate in one unit, the 611DYN faithfully recreates the circuitry and key components of the original SL 611E Series channel strip, right down to the true RMS sidechain converter and the all-discrete Class A VCA gain element used in the original hardware. As a result, engineers get the exact same compression character that has shaped countless classic recordings, now available as a compact, affordable 500 Series module. In addition, the 611DYN offers up to +28dBu of maximum input and output level, giving it plenty of headroom for hot signals. Marshall Music South Africa stocks the Solid State Logic 611DYN dynamics module for studios and 500 Series rack owners across South Africa.

What Makes the Solid State Logic 611DYN Dynamics Module a Studio Essential

The compressor/limiter section uses combined threshold and ratio controls with automatic make-up gain, so as compression increases the output level is maintained automatically — turning the ratio control fully clockwise transforms the section into a true limiter, while setting it to 1:1 bypasses compression entirely. However, the 611DYN’s flexibility doesn’t stop there: a fast attack option delivers 20dB of gain reduction in 3mS, while the slower setting relaxes this to 30mS for a gentler response, and switchable over-easy and linear/logarithmic release curves let engineers dial in everything from transparent leveling to aggressive pumping. The expander/gate section adds independent control over gating depth and expansion, whether you’re tightening up a drum recording or cleaning up a noisy vocal track. Whether you’re tracking, mixing, or mastering, the Solid State Logic 611DYN dynamics module delivers four essential dynamics tools — compressor, limiter, expander, and gate — in a single 500 Series slot. Marshall Music South Africa makes this classic SSL dynamics processor available to South African studios building out their 500 Series racks.

Tech Specs

• Format: 500 Series dynamics module (single rack space)
• Processing: Compressor/limiter and expander/gate in one unit
• Heritage: Based on the SL 4000 E console’s 611E channel strip dynamics
• Sidechain: True RMS converter
• Gain Element: All-discrete Class A VCA design (identical to original SL 611E)
• Compression Curves: Switchable over-easy and hard-knee
• Release Curves: Switchable logarithmic and linear
• Attack Time: 3mS (fast) or 30mS (slow) for 20dB gain reduction
• Threshold/Ratio: Combined control with automatic make-up gain; fully clockwise = true limiter, 1:1 = bypass
• Max Input/Output Level: +28dBu
