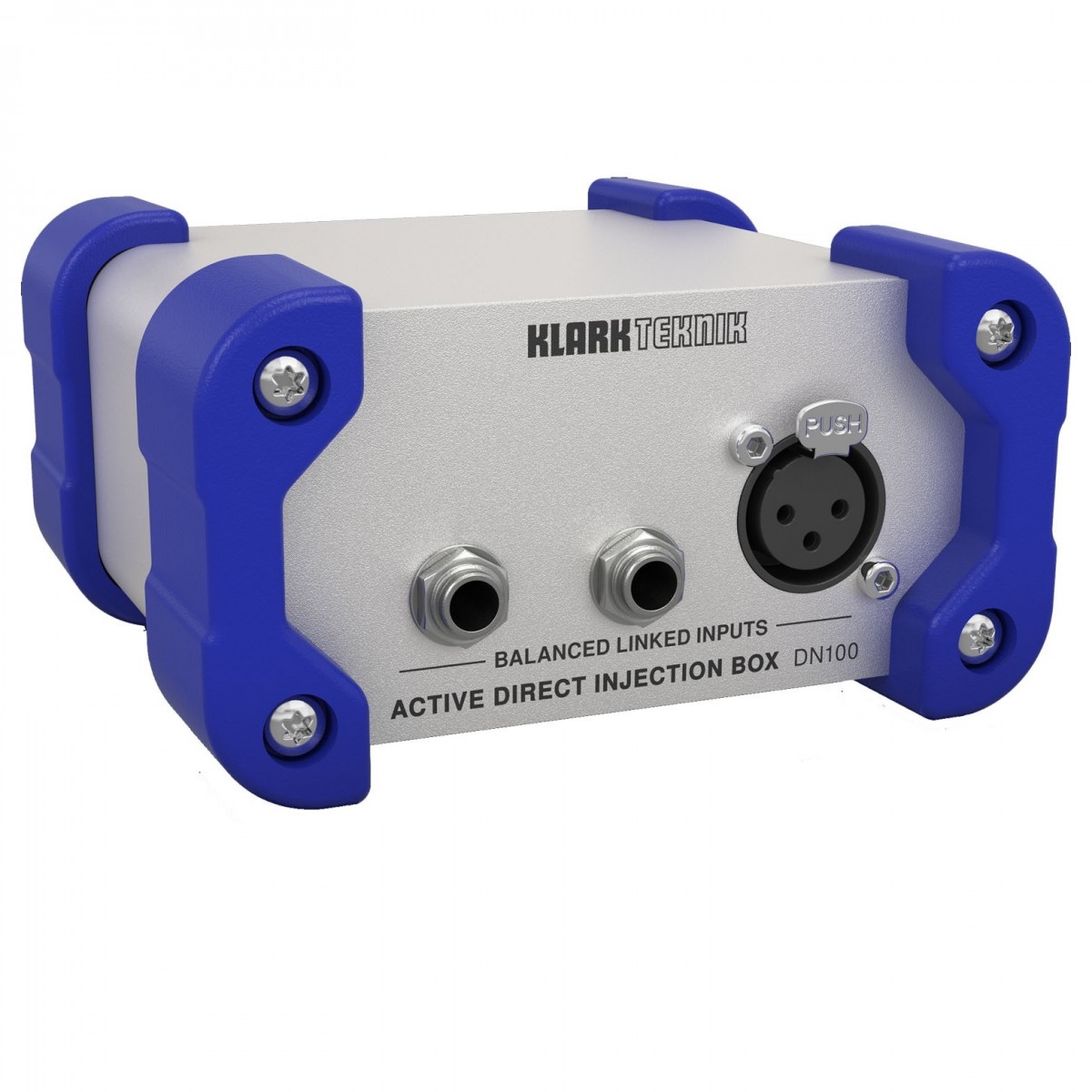

Klark Teknik DN100 V2 Active DI Box

Name: Klark Teknik DN100 V2 Active DI Box
Brand: Klark Teknik
SKU: KTDN100
Price: 1770.00 ZAR
Availability: InStock

SKU: KTDN100

Original price was: R2,175.00.Current price is: R1,770.00.

In stock

Your Product Page

Description
Tech Specs

The Klark Teknik DN100 V2 Active DI Box accurately reproduces the character of electric and acoustic instruments and allows you to send them directly to your desk or mixer. The original DN100 has been a staple of the live industry for many years now, this updated version builds on its impeccable reputation. Specifically intended for professional applications where +48 V phantom power is a standard feature on all mixing consoles, this provides a significantly higher clipping threshold than many other active DI Boxes, providing +10 dBu output into a 2 kOhm load.

It’s important your live equipment is able to handle the rigours of extensive use. Built with a thick aluminium extrusion, this protects the electronics, and in turn, is covered by a tough silicone rubber sleeve for ultimate security. This means despite the inevitable knocks and scrapes, your DI signal will remain flawless and reliable performance is ensured at all times.

High quality design

Immaculately high headroom with a rich dynamic response and sonic clarity means every nuance of your signal is retained for crystal clear sound quality. Its increased headroom means that much higher level input signals can be accommodated without the need for an attenuating pad. Combined with very low noise input circuitry, the DN100 only requires a single -30 dB pad when connecting directly to amplifier outputs. This is a DI box designed to handle whatever you throw at it.

Features

Active DI box with high-headroom design and +48 V phantom power for extended dynamic range
Fully transformer-isolated design ensures electrical separation between PA and stage equipment

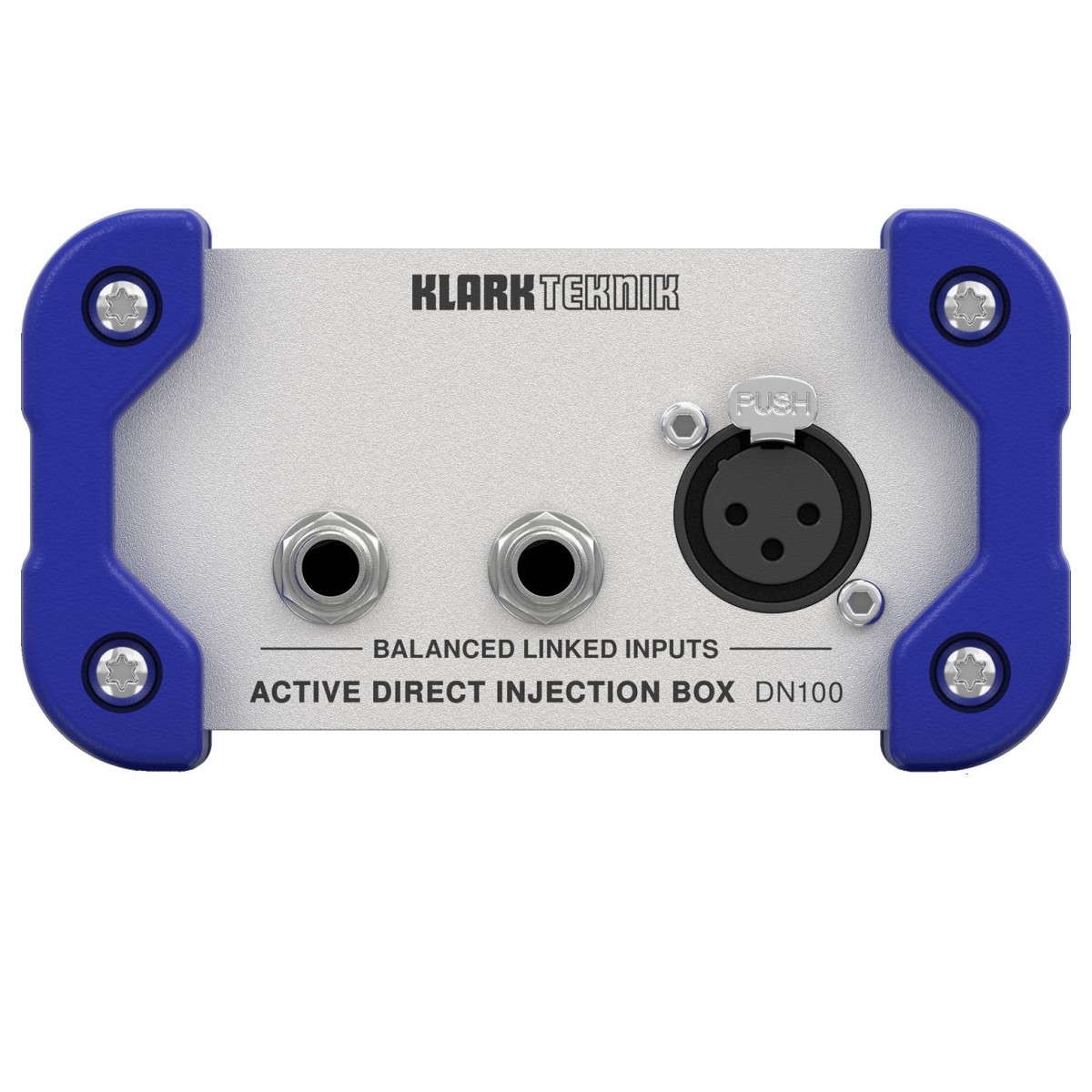

Balanced line input on Neutrik* XLR and high impedance input and link output on 1/4″ TRS connectors

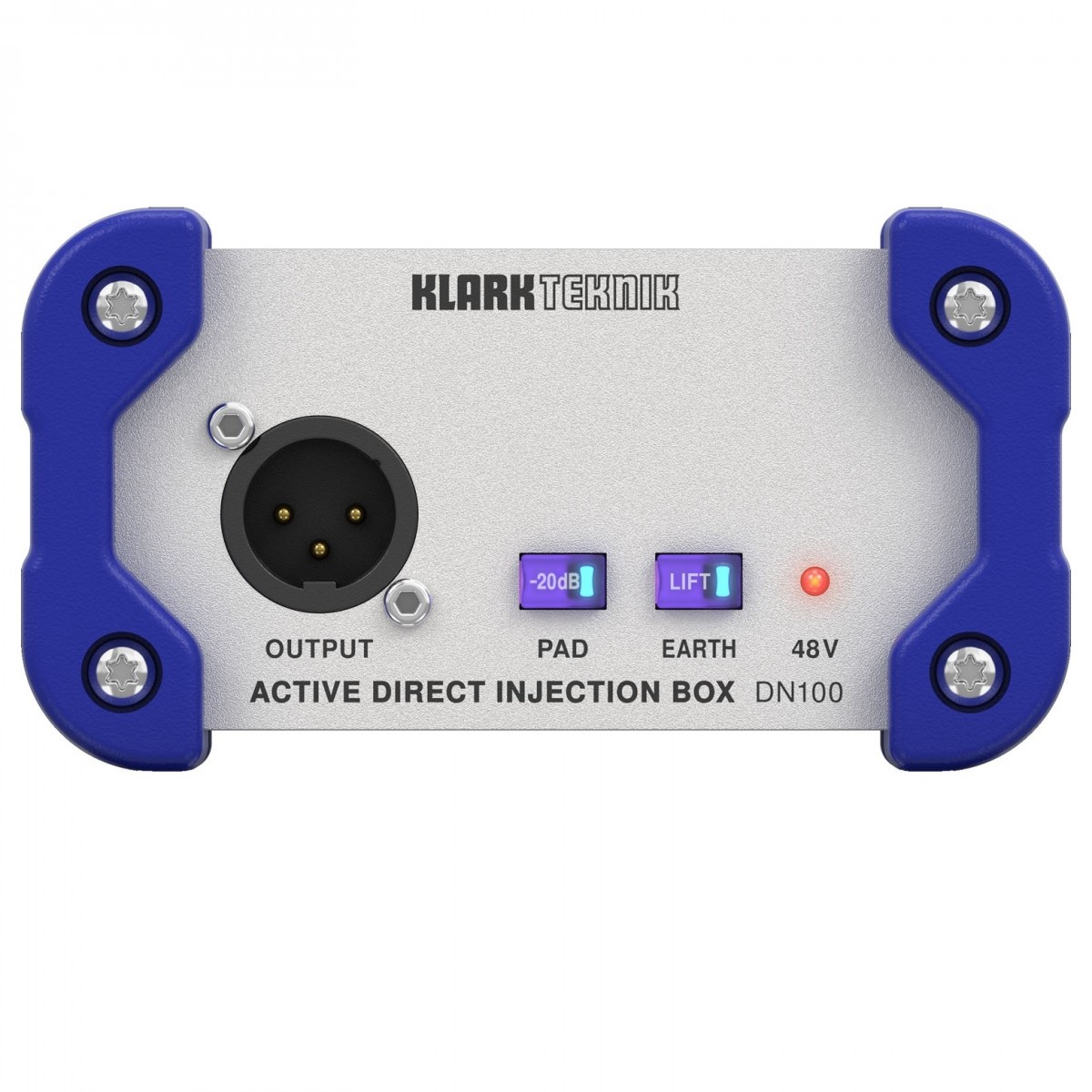

20 dB input pad and earth lift switches
Aluminium extrusion casing with protective rubber corners
Compact and rugged design

Inputs

Connectors: 2 x 1/4″ TRS and 3-pin XLR linked in parallel
Impedance: 1 MΩ nominal, balanced or unbalanced, 20 kΩ (XLR only)
Max input level: 35 dBu (with pad enabled)
Attenuator: 20 dB pad

Outputs

Connector: 3-pin XLR
Impedance: 50 Ω
Max output level: 15 dBu with 10 kΩ load
Min load: 600 Ω

System

Noise: -103 dBu, 22 Hz to 22 kHz unweighted, with input terminated by 10 kΩ resistor
Frequency response: 20 Hz to 20 kHz, ±1 dB, 10 kΩ load
Distortion (THD + N): Typically less than 0.005 @ 1 kHz, +10 dBu

Power Requirement

Voltage: +48 V phantom
Current consumption: less than 10 mA

Physical

Dimensions: 118 x 63 x 112 mm (4.7 x 2.5 x 4.4″)
