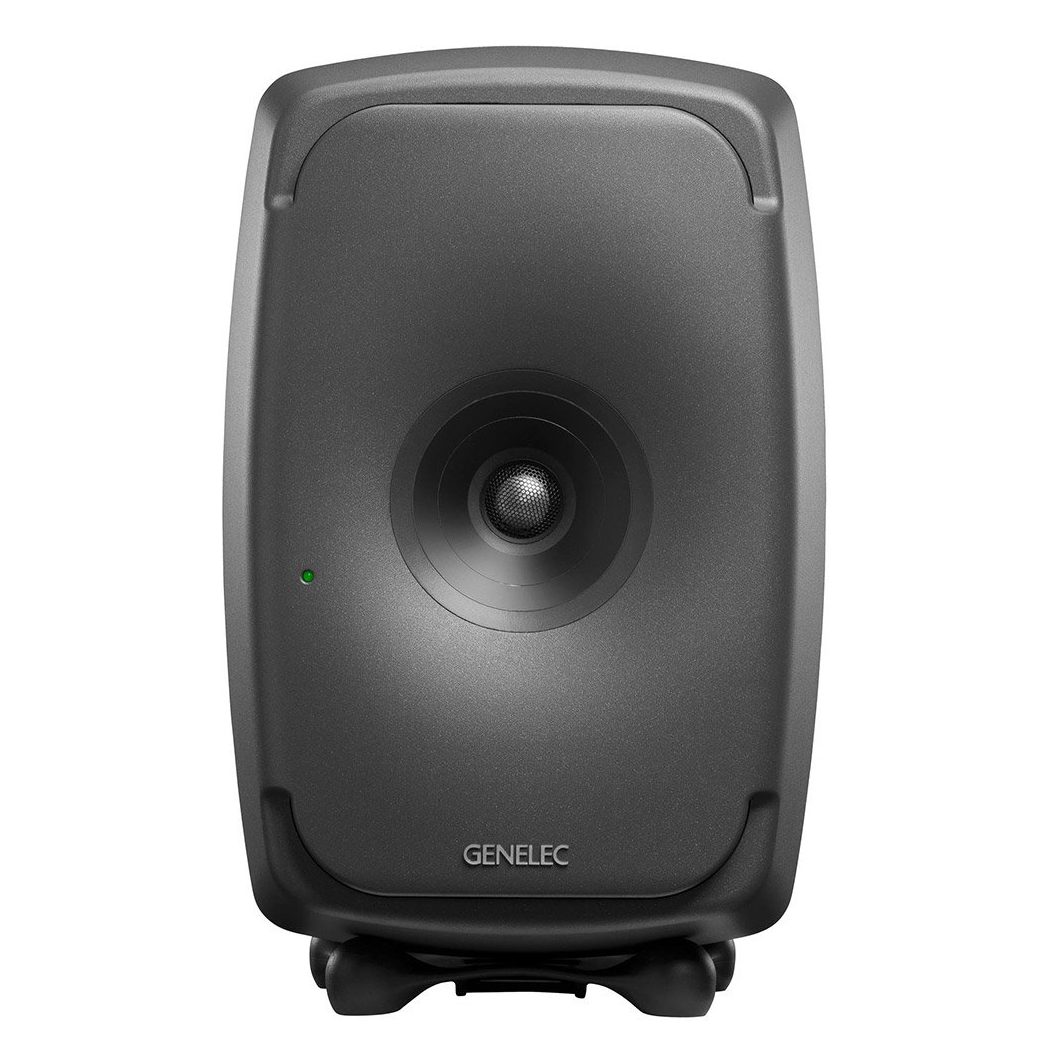

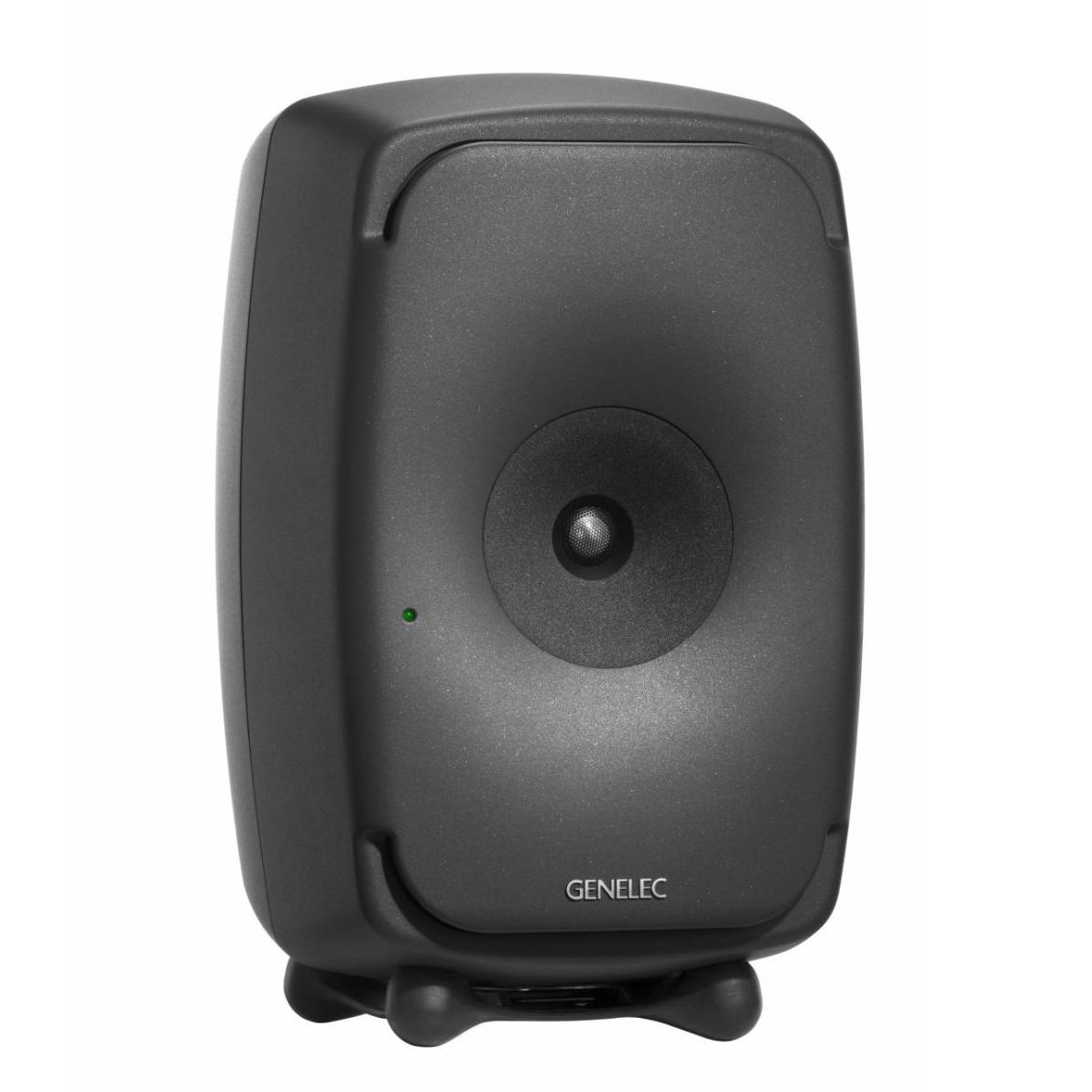

Genelec 8351B 3-way Coaxial Powered Studio Monitor (Individual)
SKU: GEN8351BR92,945.00
Powered 3-way Studio Monitor with Dual Concealed 250W 8″ Woofers, 150W 5″ Midrange, and 150W .1″ Metal Dome Tweeter (each)
In Stock at Warehouse
A revolution in three-way monitor design, the 8351B boasts a unique look, compact size and a performance that has to be heard to be believed.
Uncoloured precision
The upgraded 8351B now offers increased SPL, additional room compensation EQs, equalised delay and enhanced HF response. Offering the same extraordinary imaging and uncoloured precision of its smaller 8331A and 8341A siblings, the 8351B provides even greater LF extension, while its higher maximum SPL enables longer listening distances.
Work faster, for longer
The 8351B promotes faster and more consistent decision making, but also allows you to work reliably on longer sessions – because unnatural imaging, a main contributor to listener fatigue, is minimised. And in conjunction with our GLM software, it will adapt to your space and compensate for detrimental room influences. From mono to immersive, you can be confident of producing mixes that will translate beautifully to other rooms and systems.
System Specifications
Frequency Response
38 Hz – 20 kHz (± 1.5 dB)
Low cutoff -6dB
32 Hz
High cutoff -6dB
43 kHz
SPL
Peak SPL
≥123 dB
Maximum peak SPL output per pair on top of console at 1 m with music material.
Short term max SPL
≥113 dB
Maximum short term sine wave SPL output at 1 m on axis in half space, averaged as specified (from 100 Hz to 3 kHz).
Long term max SPL
≥103 dB
Maximum long term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver protection circuit) at 1 m.
Self-generated noise
Self-generated noise
≤5 dB
Self generated noise level in free field at 1 m on axis (A-weighted)
Weight
14.3 kg (31.5 lb)
Dimensions
Height
433 mm (17 1/16 in)
Height with Iso-Pod
452 mm (17 25/32 in)
Width
287 mm (11 5/16 in)
Depth
278 mm (10 15/16 in)
Enclosure material
Die cast aluminium
Enclosure type
Reflex port
Drivers
Bass
Driver type
Racetrack
Dual 218 x 101 mm (85/8 x 4 in) obround cones
Count
2
Width
218 mm (8 19/32 in)
Height
101 mm (3 31/32 in)
Midrange
Driver type
Coaxial
8351B midrange driver cone (coaxial)
Diameter
130 mm (5 1/8 in)
Treble
Driver type
Coaxial
8351B treble driver metal dome (coaxial)
Diameter
25 mm (31/32 in)
Directivity
Group delay
The latency at high frequencies from the input to the acoustic output, measured in the analog input:
GLM Linear Phase Range-setting set to NPL (top graph)
3.1 ms
GLM Linear Phase Range-setting set to WPL (bottom graph)
7.5 ms
In Genelec performance graphics, the time of converting the from an electronic input signal to the acoustic output in a Genelec monitor is described by two factors – latency and group delay. The group delay factor can be read in the graphics for a specific frequency. The total frequency-specific input-to-output delay is a sum of the latency and group delay factors. To understand the significance of this total delay, consider that moving a loudspeaker away by 1 meter creates an additional delay of about 3 ms.
Amplifier Section
Amplifiers
8351B bass amplifier
250 W Class D
8351B midrange amplifier
150 W Class D
8351B treble amplifier
150 W Class D
Mains voltage
100-240 VAC 50/60Hz
Power consumption
ISS Active
≤1 W
Idle
≤16 W
Full output
200 W
Signal processing section

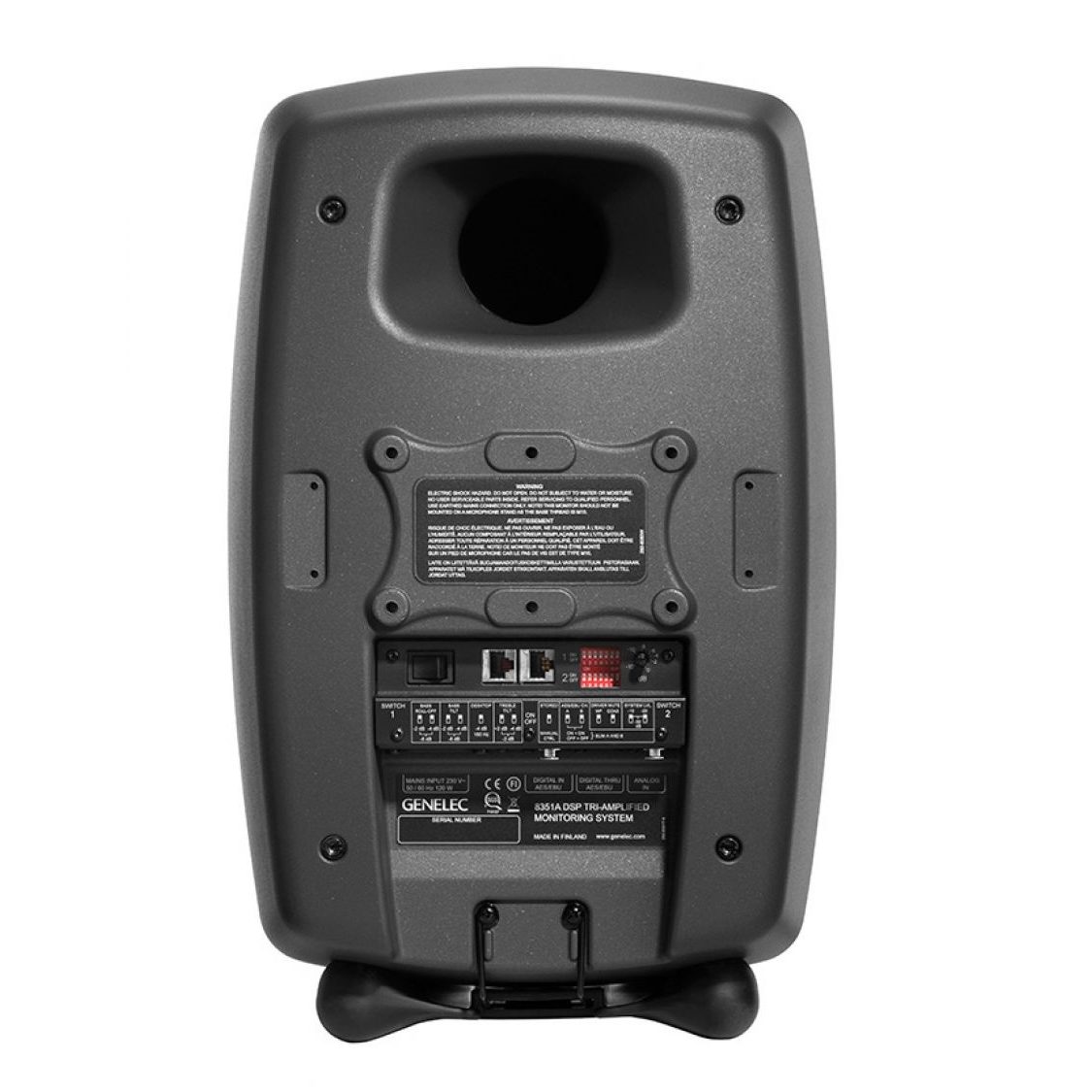

Connectors
Input
Analog signal input connector XLR female (10 kOhm input load impedance).
Input
XLR female (conforms to IEC 60958-4)
Output
XLR male (conforms to IEC 60958-4)
2 x Control
Two CAT5 (RJ45) GLM Network connectors for computer control using the Genelec Loudspeaker Manager (GLM) software.
Crossover
Bass/Mid
320 Hz
Mid/Treble
2800 Hz
