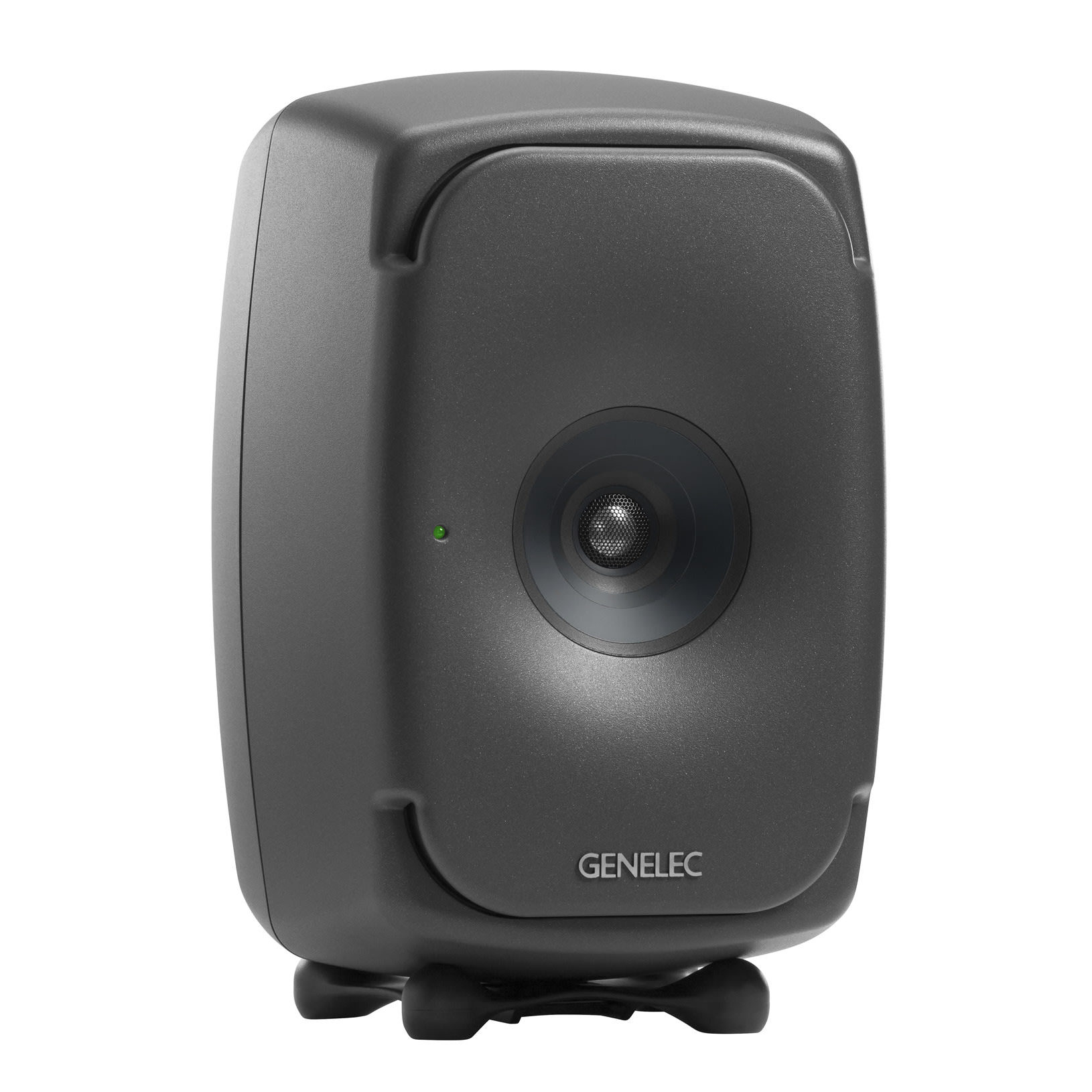

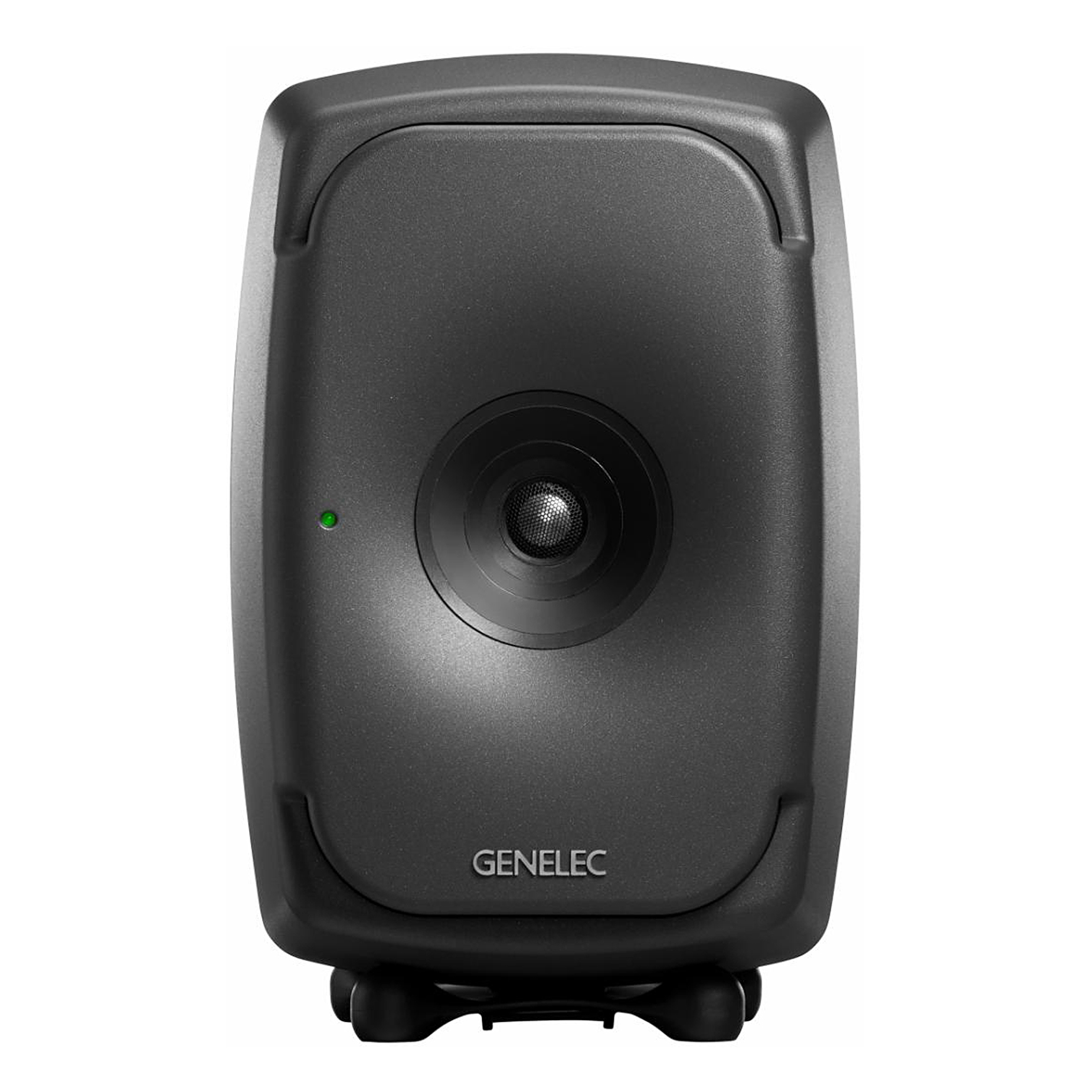

Genelec 8341A SAM 3-way Coaxial Powered Studio Monitor (Individual)
SKU: GEN8341AR68,565.00
Powered 3-way Studio Monitor with Dual Concealed 250W 6.625″ x 3.5″ Woofers, 150W 3.5″ Midrange, and 150W .75″ Tweeter (each)
In Stock at Warehouse
High headroom three-way with unbelievable imaging. The 8341A is the point source monitor with the perfect blend of size and performance.
Work faster, for longer
For applications calling for extraordinary imaging, extended frequency response, short to medium listening distance or long, fatigue-free working hours, The Ones are in an elite league of their own. They promote faster and more consistent decision making, and they also extend listening time, because unnatural imaging – a main contributor to listener fatigue – is minimised.
Mixes that translate
As bigger brother to the super-compact 8331A, the 8341A offers increased LF extension and a higher SPL capability, so is ideally suited to slightly longer listening distances. In conjunction with our GLM calibration software, the 8341A will also compensate for detrimental room acoustics and distance delay, regardless of whether you work in mono, stereo or immersive formats. So now you can deliver mixes that translate beautifully – every time.
System Specifications
Frequency Response
45 Hz – 20 kHz (± 1.5 dB)
Low cutoff -6dB
38 Hz
High cutoff -6dB
37 kHz
SPL
Peak SPL
≥118 dB
Maximum peak acoustic output per pair in a listening room with music material at 1 m.
Short term max SPL
≥110 dB
Maximum short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz at 1 m.
Long term max SPL
≥101 dB
Maximum long term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver protection circuit) at 1 m.
Self-generated noise
Self-generated noise
≤3 dB
Self generated noise level in free space at 1 m on axis (A-weighted).
Weight
Weight
9.8 kg (21.6 lb)
Dimensions
Height
351 mm (13 13/16 in)
Height with Iso-Pod
370 mm (14 9/16 in)
Width
237 mm (9 11/32 in)
Depth
243 mm (9 9/16 in)
Enclosure
Enclosure material
Die cast aluminium
Enclosure type
Reflex port
Drivers
Bass
Driver type
Racetrack
8341A bass driver
Count
2
Width
170 mm (6 11/16 in)
Height
90 mm (3 17/32 in)
Midrange
Driver type
Coaxial
8341A midrange driver cone (coaxial)
Diameter
90 mm (3 17/32 in)
Treble
Driver type
Coaxial
8341A treble driver metal dome (coaxial)
Diameter
19 mm (3/4 in)
Directivity
Harmonic distortion
> 100 Hz ≤0.5 %
Group delay
The latency at high frequencies from the input to the acoustic output, measured in the analog input:
GLM Linear Phase Range-setting set to NPL (top graph)
3.3 ms
GLM Linear Phase Range-setting set to WPL (bottom graph)
7.0 ms
In Genelec performance graphics, the time of converting the from an electronic input signal to the acoustic output in a Genelec monitor is described by two factors – latency and group delay. The group delay factor can be read in the graphics for a specific frequency. The total frequency-specific input-to-output delay is a sum of the latency and group delay factors. To understand the significance of this total delay, consider that moving a loudspeaker away by 1 meter creates an additional delay of about 3 ms.
Amplifier Section
Amplifiers
8341 bass amplifier
250 W Class D
8341 midrange amplifier
150 W Class D
8341 treble amplifier
150 W Class D
Mains voltage
100-240 VAC 50/60Hz
Power consumption
ISS Active
≤0.5 W
Idle
≤16 W
Full output
250 W
Signal processing section
Connectors
Input
Analog signal input connector XLR female, balanced 10 kOhm.
Input
Digital signal input connector XLR female 110 Ohm.
Output
Digital signal output / Thru connector XLR male 110 Ohm.
2 x Control
Two CAT5 (RJ45) GLM Network connectors for computer control using the Genelec Loudspeaker Manager (GLM) software.
Crossover
Bass/Mid
500 Hz
Mid/Treble
3000 Hz
