DBX DriveRack VENU360 Loudspeaker Management System
SKU: XWM-DBXVENUE036Original price was: R25,875.00.R17,899.00Current price is: R17,899.00.
Enquire for Availability & Updated Price
Notify me when the item is back in stock.

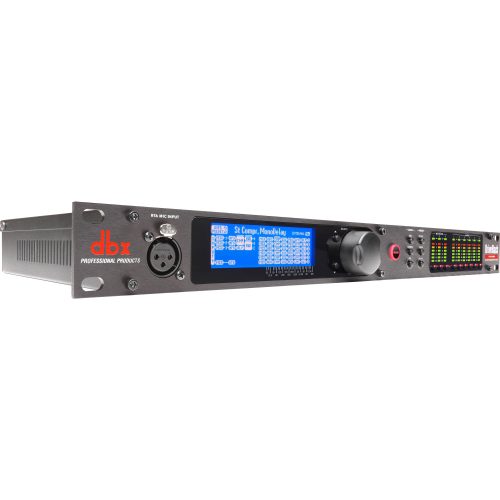

The DriveRack VENU360 from dbx is a loudspeaker-management processor designed to protect and optimize front-of-the house, stage monitor, delay-fill, and zone loudspeaker systems in clubs, outdoor music events, or houses of worship.
Connect the VENU360 between your mixer and amplifiers/powered speakers, and use it for precise feedback elimination, automatic speaker level and room equalization, crossover-frequency setting, dbx compression/limiting, driver alignment delay, and more.
The unit provides a 5 x 6 routing/mixing matrix (using four AES signals and one analog signal) and a 3 x 6 signal processing chain. The 24-bit A/D and D/A converters with dbx Type IV conversion protect the incoming audio signal from accidental digital clipping at the A/D stage, while the 32-bit floating point, 48 / 96 kHz internal processing produces professional audio quality with high headroom and wide dynamic range.

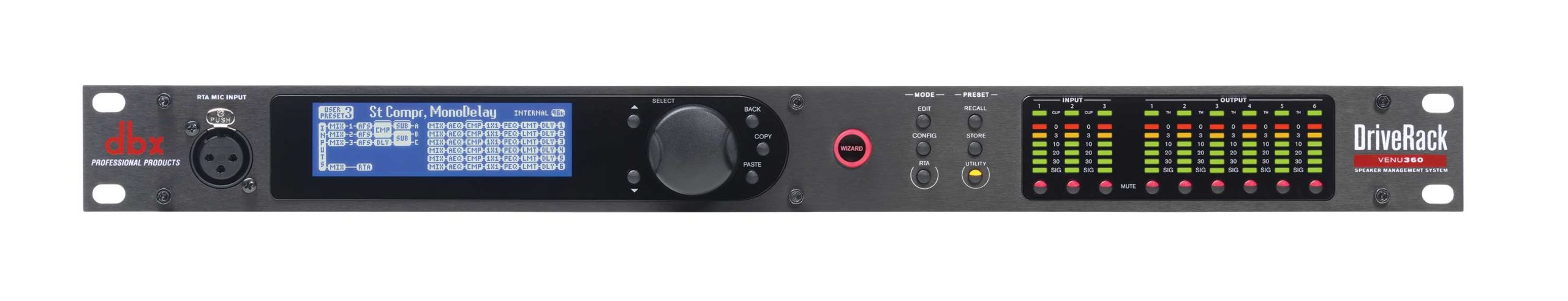

For easy operation, the Wizard functions guide you through simple, step-by-step processes to help you quickly configure the unit. For more control, you can use the manual mode which lets you customize each parameter separately. A large, bright, LCD display and nine 6-segment signal meters provide easy-to-read visual feedback. Additionally, the free DriveRack VENU360 control application offers network control via the built-in Ethernet port, and is available for iOS, Android, Mac, and Windows-compatible devices.
Why Buy From Marshall Music
At Marshall Music, we’re all passionate and highly experienced musicians that love what we do. Family run and family owned for over 35 years, we stock a huge variety of the very best brands in the world of musical instruments, music technology, professional audio and accessories. At Marshall Music, you’ll get the right advice – exactly what you need to make the best possible purchasing decision. We’ll do all we can to make sure you get the right thing at the right price as efficiently as possible – leaving you with a smile on your face!
| Inputs | Number of Inputs: 3 x analog line inputs / 2 x AES digital inputs (shared connectors), 1 x RTA mic input
Connectors: 3 x female XLRs (2 x selectable between analog / AES digital audio formats), 1 x female XLR RTA mic input Type: Electronically balanced, RF filtered Impedance: > 30 kOhms, balanced line to line Max Input Level (Line Inputs): > +28 dBu, balanced, ≤ 1% THD CMRR: > 50 dB at 1 kHz RTA Mic Preamp Phantom Power: +48 VDC |
| Analog Outputs | Number of Outputs: 6 x line outputs
Connectors: Male XLR Type: Electronically balanced, RF filtered Impedance: 120 Ohms, balanced line to line Max Output Level: +22 dBu, balanced, ≤1% THD Alignment Delay: Up to 1000 ms per output channel |
| A/D Conversion | A/D Converter: 24-bit with dbx Type IV conversion system
A/D Dynamic Range: 117 dB A-weighted, 114 dB unweighted, 22 kHz BW Type IV Dynamic Range (22 kHz BW): 129 dB with transient material / A-weighted, 126 dB with transient material / unweighted, 121 dB typical with program material / A-weighted |
| D/A Conversion | D/A Converter: 24-bit
D/A Dynamic Range: 116 dB A-weighted, 113 dB unweighted, 22 kHz BW |
| System Performance | Internal Processing Wordlength: 32-bit floating point
Supported Sample Rates: 48/96 kHz (32-192 kHz using sample rate conversion) Dynamic Range: 114 dB A-weighted, 110 dB unweighted THD+Noise: 0.0025% typical at +4 dBu, 1 kHz, 0 dB input gain Frequency Response: 20 Hz – 20 kHz, +0 /- 0.5 dB Interchannel Crosstalk: < -97 dB, -105 dB typical 20-20 kHz, +4 dBu, all channels measured Latency: 2.57 ms at 48 kHz, 2.28 ms at 96 kHz (Analog input to output) / 2.31 ms at 48 kHz, 2.15 ms at 96 kHz (Digital AES input to output) Operating Temperature: 32 to 104° F / 0 to 40° C |
| Compatibility | N/A |
| Power Supply | Operating Voltage: 100-240 VAC, 50/60 Hz
Power Consumption: 30 W |
| Dimensions (H x W x D) | 1.75 x 19.00 x 8.00″ / 4.45 x 48.26 x 20.32 cm |
| Weight | 5.48 lb / 2.49 kg |
| Package Weight | 7.8 lb |
| Box Dimensions (LxWxH) | 22.2 x 11.4 x 3.7″ |
